Carefusion - SIPAP ventilator cart - A01

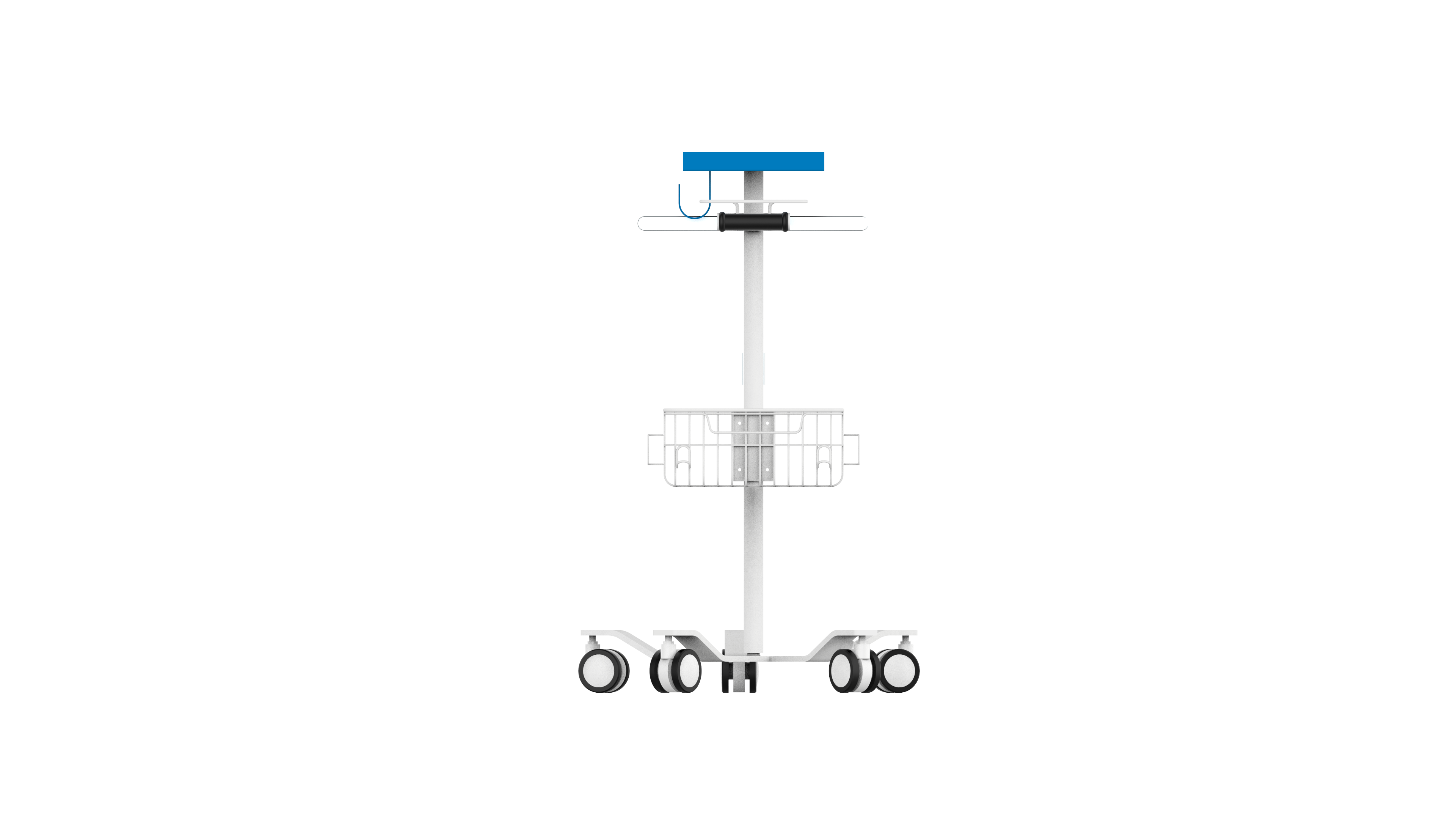

A01 Ventilator Cart

1. The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.

2. Standard trolleys are in stock, and the minimum order is one piece.

3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.

FOB Price: US $0.5 - 9,999 / Piece

Min.Order Quantity: 100 Piece/Pieces

Supply Ability: 10000 Piece/Pieces per Month

Trolley	Simple SIPAPTrolley
model	A01
Material Code	1.01.01.0026
color	White sand texture
Trolley specifications/materials	φ560*1220mm White sand grain Q235 steel
Base specifications/materials	φ560*70 mm White sand texture Q235Steel
Column specifications/materials	φ34*1120mm White sand pattern Q235 steel
Installation platform specifications/materials	23024532mm Blue wrinkle Q235Steel
Handle specifications/materials	22517225mm White sand grain Q235 steel
Handrail specifications/materials	φ35*120mm Black nylon
Basket specifications/materials	330210135mm White sand pattern Q235 steel
Humidifier pendant specifications/materials	554016mm sandblasted oxidized bright white 6063 aluminum
Caster Specifications/Material	3-inch caster (2 brakes, 3 universal) 50*90mm PA+PU white and black
Humidifier mounting plate specifications/materials
Partition quantity/specification/material
Monitor stand specifications/materials
Drawer specifications/materials
Cable hanger specifications/materials
Oxygen cylinder rack specifications/materials
Specifications/materials of strap bracket
Load-bearing	20Kg
Maximum push speed	2m/s
Maximum tilt angle	15°
Optional
Packing box specifications	900570210mm Double layer Mecca 170g
net weight	18.5kg
Gross Weight	21kg
