Medin ventilator cart - A03

A03-Ventilator Patient Monitor Cart

微信图片_20210908131428

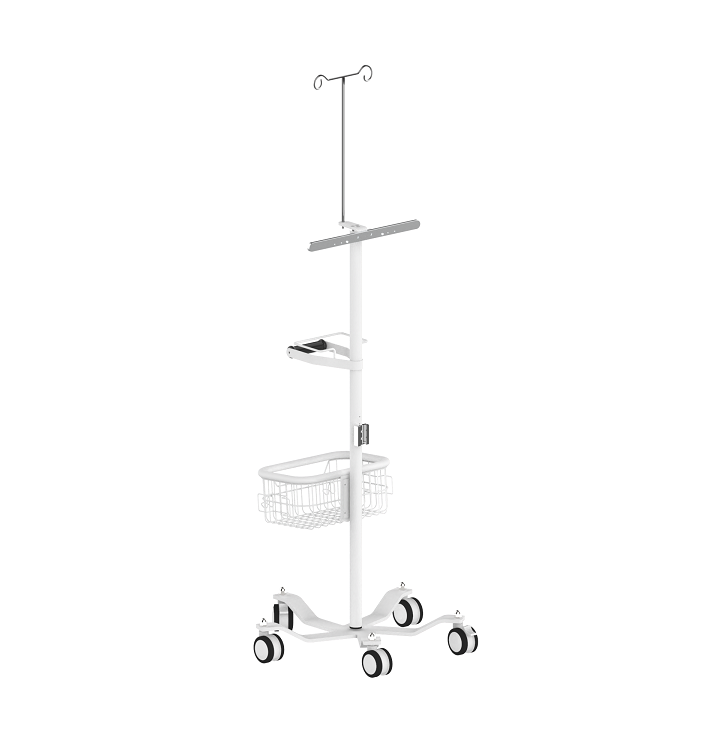

Medin ventilator cart – A03

1.  The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.

2. Standard trolleys are in stock, and the minimum order is one piece.

3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.


Product Detail

Medical Trolley

Product Tags

Trolley Easy to moveTrolley
model A03
Material Code 1.01.01.0028
color White sand texture
Trolley specifications/materials φ560*1220mm White sand grain Q235 steel
Base specifications/materials φ560*70 mm White sand texture Q235Steel
Column specifications/materials φ34*1120mm White sand pattern Q235 steel
Installation platform specifications/materials 94*33*70mm White sand pattern Q235Steel
Handle specifications/materials 225*172*25mm White sand grain Q235 steel
Handrail specifications/materials φ35*120mm Black nylon
Basket specifications/materials 330*210*135mm White sand pattern Q235 steel
Bar specifications/materials 400*25*10mm oxidized bright white 6061 aluminum plate
Humidifier pendant specifications/materials 55*40*16mm sandblasted oxidized bright white 6063 aluminum
Caster Specifications/Material 3-inch caster (2 brakes, 3 universal) 50*90mm PA+PU white and black
Humidifier mounting plate specifications/materials
Partition quantity/specification/material
Monitor stand specifications/materials
Drawer specifications/materials
Cable hanger specifications/materials
Oxygen cylinder rack specifications/materials
Specifications/materials of strap bracket
Load-bearing 20Kg
Maximum push speed 2m/s
Maximum tilt angle 15°
Optional
Packing box specifications 1170*600*260mm Double layer Mecca 170g
net weight 10.8kg
Gross Weight 14.6kg
