Injection Pump Trolley - A06
A06-Injection Pump Trolley

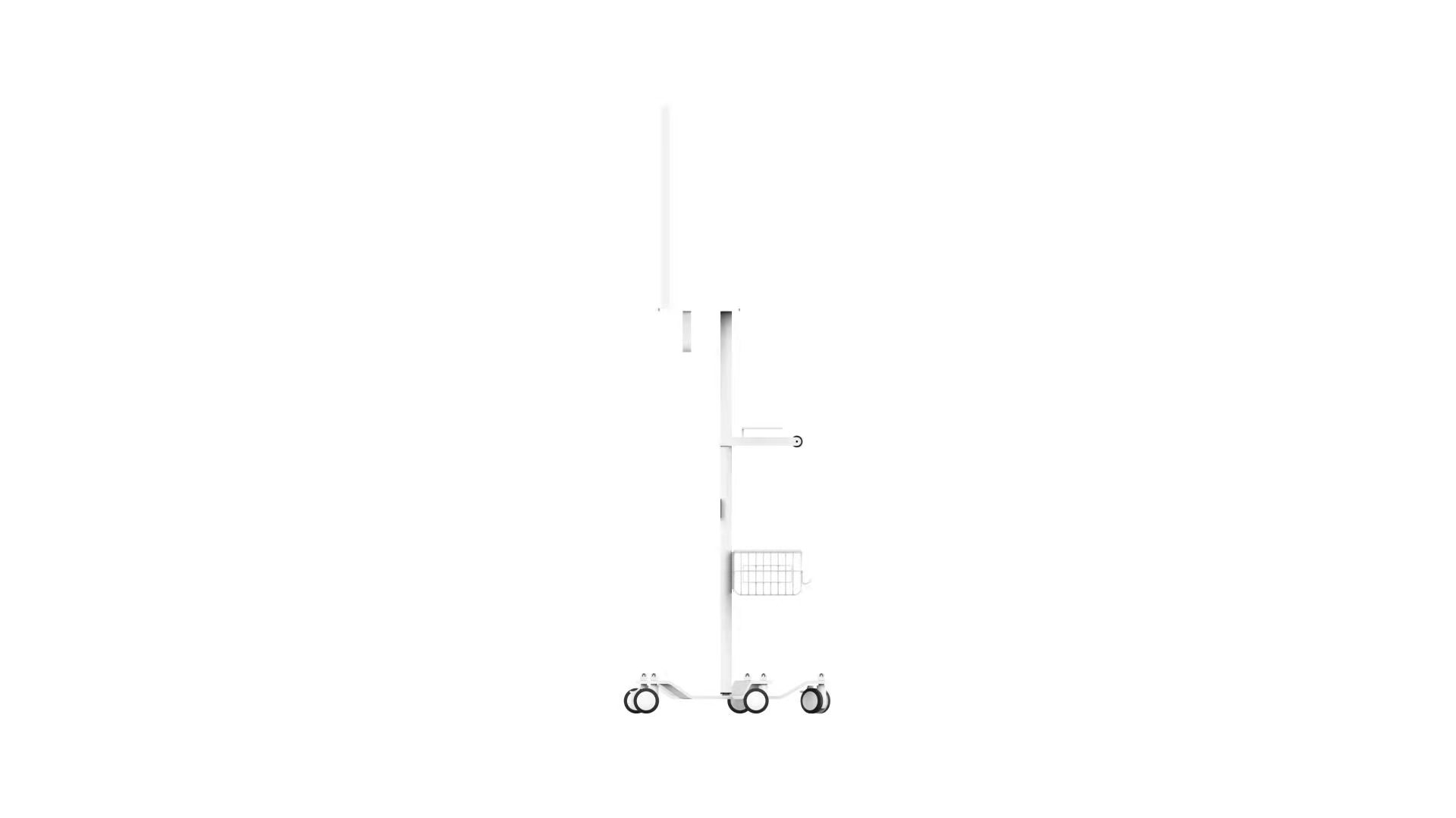

Injection Pump Trolley – A06
1. The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.
2. Standard trolleys are in stock, and the minimum order is one piece.
3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.
| Trolley | Simple infusion pump trolley |
| model | A06 |
| Material Code | 1.01.01.0071 |
| color | White sand texture |
| Trolley specifications/materials | φ560*1220mm White sand grain Q235 steel |
| Base specifications/materials | φ560*70 mm White sand texture Q235Steel |
| Column specifications/materials | φ34*1120mm White sand pattern Q235 steel |
| Installation platform specifications/materials | 275*200*5mm white sand pattern Q235 steel |
| Infusion pump bracket specifications/materials | φ25*700mm Natural color 304 stainless steel |
| Handle specifications/materials | 225*172*25mm White sand grain Q235 steel |
| Handrail specifications/materials | φ35*120mm Black nylon |
| Basket specifications/materials | 330*210*135mm White sand pattern Q235 steel |
| Caster Specifications/Material | 3-inch caster (2 brakes, 3 universal) 50*90mm PA+PU white and black |
| Humidifier mounting plate specifications/materials | |
| Partition quantity/specification/material | |
| Monitor stand specifications/materials | |
| Drawer specifications/materials | |
| Cable hanger specifications/materials | |
| Humidifier pendant specifications/materials | |
| Oxygen cylinder rack specifications/materials | |
| Specifications/materials of strap bracket | |
| Load-bearing | 15Kg |
| Maximum push speed | 2m/s |
| Maximum tilt angle | 15° |
| Optional | |
| Packing box specifications | 900*570*210mm Double layer Mecca 170g |
| net weight | 18.5kg |
| Gross Weight | 21kg |
1. The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.
2. Standard trolleys are in stock, and the minimum order is one piece.
3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.
