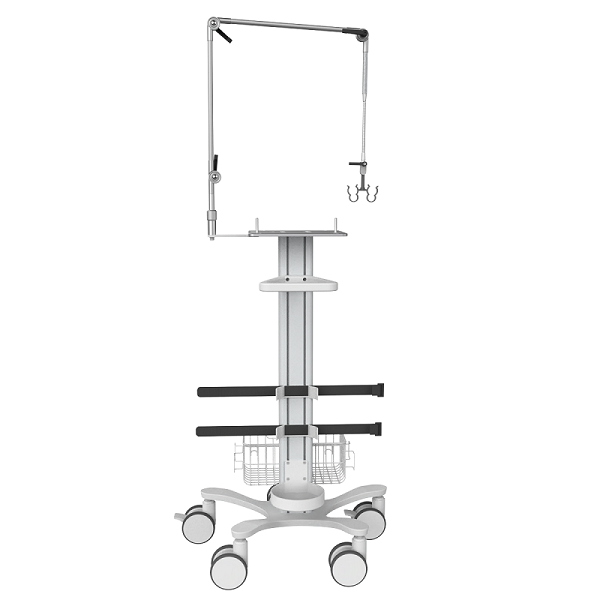

TV-100 Ventilator cart A07
A07 – Ventilator Cart
TV-100 Ventilator cart A07
1. The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.
2. Standard trolleys are in stock, and the minimum order is one piece.
3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.
| Trolley | Simple trolley |
| model | A07 |
| Material Code | 1.01.01.0083 |
| color | White sand texture |
| Trolley specifications/materials | φ560*1120mm White sand grain Q235 steel |
| Base specifications/materials | φ560*70 mm White sand texture Q235Steel |
| Column specifications/materials | φ34*1000mm White sand grain Q235 steel |
| Installation platform specifications/materials | 28*200*120mm gray Q235 steel |
| Humidifier pendant specifications/materials | 55*40*16mm sandblasted oxidized bright white 6063 aluminum |
| Specifications/materials of strap bracket | 120*40*2.5mm White sand pattern Q235 steel |
| Handle specifications/materials | 170*35*45 Black 6063 aluminum |
| Basket specifications/materials | 330*210*135mm White sand pattern Q235 steel |
| Bars/Specifications/Material | 400*25*10mm oxidized bright white 6061 aluminum plate |
| Caster Specifications/Material | 3-inch caster (5 universal) 50*90mm PA+PU white and black |
| Cable hanger specifications/materials | |
| Drawer specifications/materials | |
| Infusion stand hook specifications/materials | |
| Humidifier mounting plate specifications/materials | |
| Handrail specifications/materials | |
| Handle mounting plate | |
| Monitor stand specifications/materials | |
| Oxygen cylinder rack specifications/materials | |
| Load-bearing | 10Kg |
| Maximum push speed | 2m/s |
| Maximum tilt angle | 15° |
| Optional | |
| Packing box specifications | 1170*600*260mm Double layer Mecca 170g |
| net weight | 14kg |
| Gross Weight | 21kg |
| Robotic Arm Specifications | |
| Robotic Arm | Steel quick-release robot arm |
| model | SA-02 |
| Material Code | 2.01.02.0002 |
| color | 304 stainless steel natural color |
| Material | 304 stainless steel natural color |
| Arm load | 5Kg |
| angle | 0°-210° |
| length | 1380mm |
| diameter | φ12 |
| Quick-plug specifications/materials | φ16*65mm |
| Thread specification | φ14*1.5mm |
| Coil size/material | φ10*140mm chrome-plated Q235 steel |
| Coil load bearing | 0.75Kg |
| Hook Material | 6061 Aluminum |
| Installation | Quick Insert |
| Number of joints | 3 sections |
| Joint structure | Zinc alloy joints |
| weight | 1.15Kg |
| Packing size | 530*95*80mm |
| Gross Weight | 1.33Kg |
1. The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.
2. Standard trolleys are in stock, and the minimum order is one piece.
3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.
