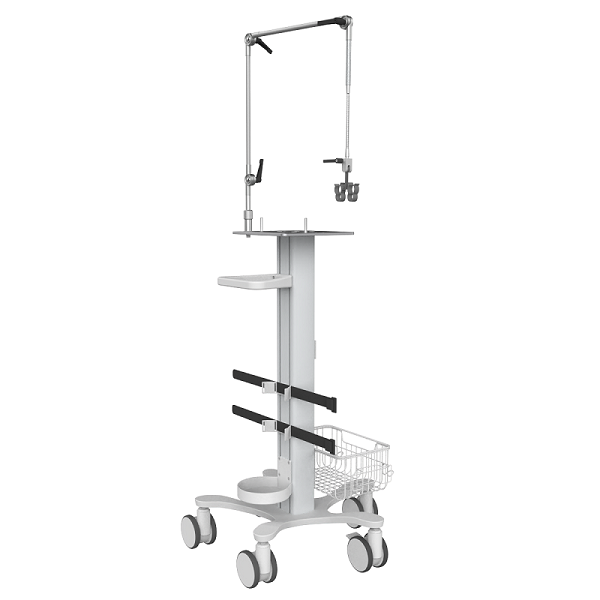

Flight60 Ventilatory cart - B01
B01 – Ventilator Cart
Flight60 Ventilatory cart – B01
1. The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.
2. Standard trolleys are in stock, and the minimum order is one piece.
3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.
| Trolley | F60 Cart |
| model | B01 |
| Material Code | 1.01.01.0001 |
| color | White sand texture |
| Trolley specifications/materials | φ600*890mm White sand grain 6063 aluminum + Q235 steel |
| Base specifications/materials | φ600*70mm White sand grain 6063 aluminum |
| Column specifications/materials | 78*100*810mm White sand grain 6063 aluminum |
| Installation platform specifications/materials | 250*270*8mm oxidized bright white 6061 aluminum plate |
| Handle specifications/materials | 230*175*4mm White sand grain Q235 steel |
| Handrail specifications/materials | φ30*222mm oxidized bright white 6063 aluminum |
| Basket specifications/materials | 330*210*135mm White sand pattern Q235 steel |
| Humidifier pendant specifications/materials | 55*40*16mm sandblasted oxidized bright white 6063 aluminum |
| Humidifier mounting plate specifications/materials | 68*55*4mm White sand pattern Q235 steel |
| Caster Specifications/Material | 3-inch caster (2 brakes, 3 universal) 50*90mm PA+PU white and black |
| Oxygen cylinder rack specifications/materials | 150*99*3mm White sand pattern Q235 steel |
| Specifications/materials of strap bracket | 120*40*2.5mm White sand pattern Q235 steel |
| Load-bearing | 30Kg |
| Maximum push speed | 2m/s |
| Maximum tilt angle | 15° |
| Cable hanger specifications/materials | |
| Partition quantity/specification/material | |
| Monitor stand specifications/materials | |
| Drawer specifications/materials | |
| Optional | |
| Packing box specifications | 900*570*210mm Double layer Mecca 170g |
| net weight | 11.9Kg |
| Gross Weight | 14.6Kg |
| Robotic Arm Specifications | |
| Robotic Arm | Threaded Aluminum Robot Arm |
| model | SA-01 |
| Robotic Arm | 2.01.02.0001 |
| color | Sandblasting oxidation bright white |
| Material | 6063 Aluminum |
| Arm load | 5Kg |
| angle | 0°-210° |
| length | 1450mm |
| diameter | φ14 |
| Thread specification | M14*1.5 |
| Coil size/material | φ10*145mm chrome-plated Q235 steel |
| Coil load bearing | 0.75Kg |
| Hook Material | nylon |
| Installation | Thread |
| Number of joints | 3 sections |
| Joint structure | Zinc alloy joints |
| weight | 1.15Kg |
| Packing size | 530*95*80mm |
| Gross Weight | 1.33Kg |
1. The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.
2. Standard trolleys are in stock, and the minimum order is one piece.
3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.
