B09 – MEDICAL TROLLEY


Product Detail

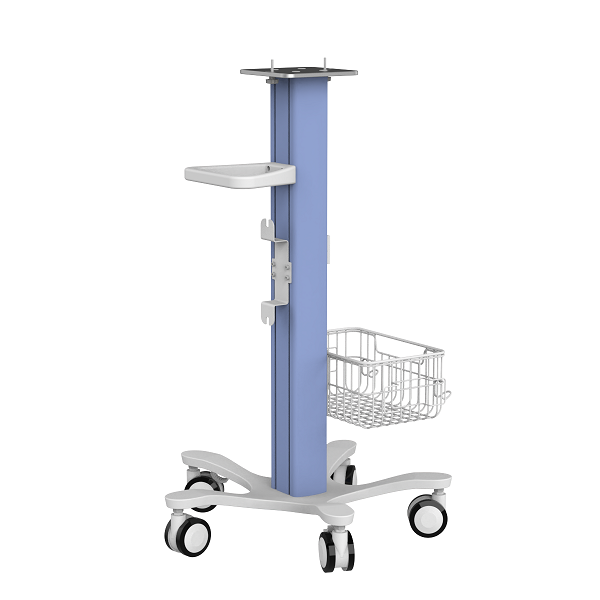

Medical Trolley

Product Tags

Trolley Sophie Trolley
model B09
Material Code 1.01.01.0009
color White sand texture
Trolley specifications/materials φ600*890mm White sand grain 6063 aluminum + Q235 steel
Base specifications/materials φ600*70mm White sand grain 6063 aluminum
Column specifications/materials 78*100*810mm White sand grain 6063 aluminum
Installation platform specifications/materials 172*172*8mm oxidized bright white 6061 aluminum plate
Handle specifications/materials  230*175mm White sand grain Q235 steel
Handrail specifications/materials φ30*222mm oxidized bright white 6063 aluminum
Basket specifications/materials 330*210*135mm White sand pattern Q235 steel
Humidifier pendant specifications/materials 55*40*16mm sandblasted oxidized bright white 6063 aluminum
Humidifier mounting plate specifications/materials 68*55*4mm White sand pattern Q235 steel
Cable hanger specifications/materials 204*65*34mm White sand grain Q235 steel
Caster Specifications/Material 3-inch caster (2 brakes, 3 universal) 50*90mm PA+PU white and black
Bar specifications/materials
Horizontal mounting plate specifications/materials
Infusion stand hook specifications/materials
Partition quantity/specification/material
Monitor stand specifications/materials
Drawer specifications/materials
Oxygen cylinder rack specifications/materials
Specifications/materials of strap bracket
Load-bearing 30Kg
Maximum push speed 2m/s
Maximum tilt angle 15°
Optional
Packing box specifications 900*570*210mm Double layer Mecca 170g
net weight 9Kg
Gross Weight 11.6Kg




  • Previous:
  • Next:

  • 1.  The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.

    2. Standard trolleys are in stock, and the minimum order is one piece.

    3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.
