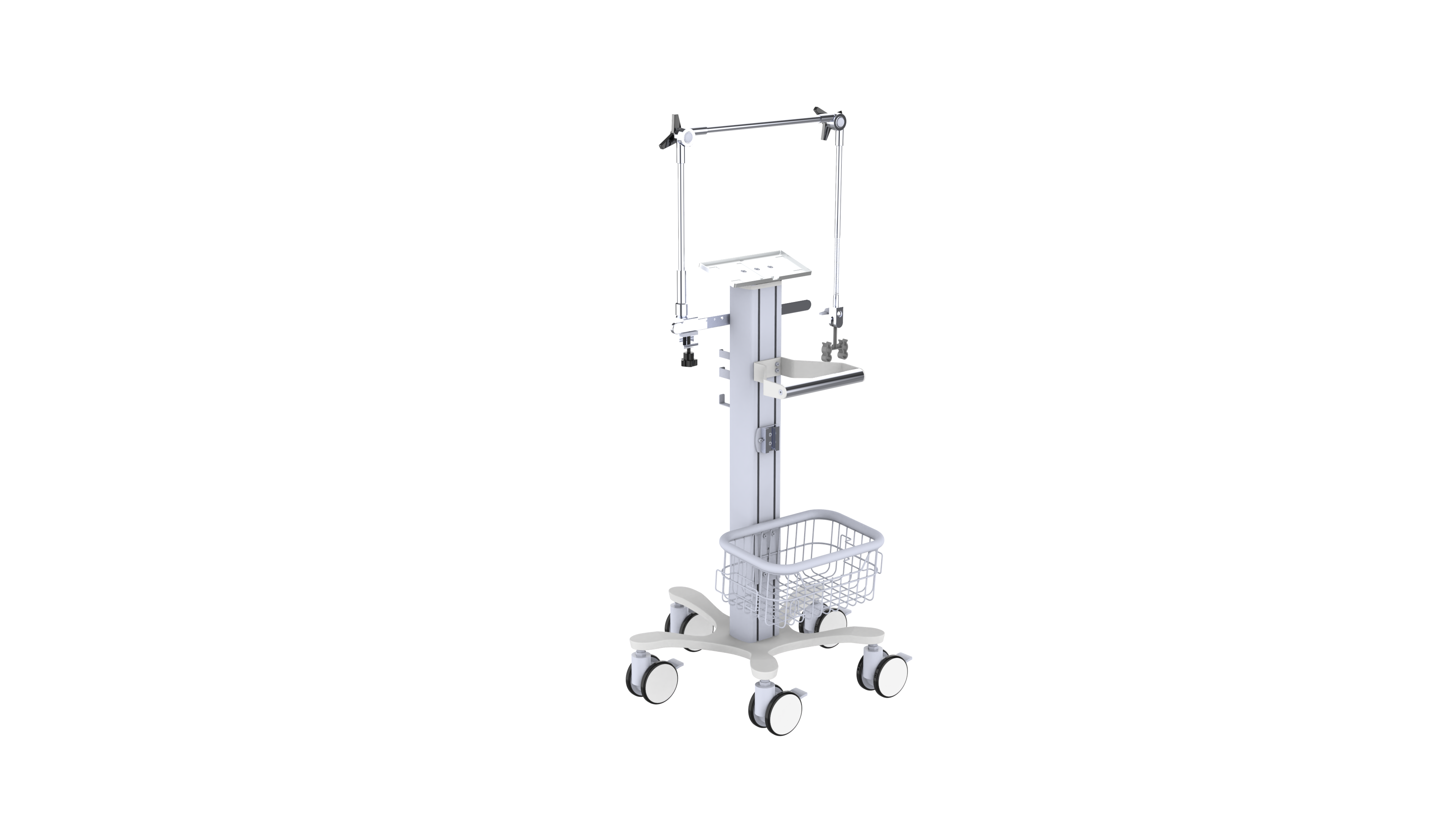

B13 Medical Trolley - for YUWELL equipment
B13 – Medical Trolley
1. The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.
2. Standard trolleys are in stock, and the minimum order is one piece.
3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.
| Trolley | Medical Trolley |
| model | B13 |
| Material Code | 1.01.01.0013 |
| color | White sand texture |
| Trolley specifications/materials | φ600*990mm White sand grain 6063 aluminum + Q235 steel |
| Base specifications/materials | φ600*70mm White sand grain 6063 aluminum |
| Column specifications/materials | 78*100*810mm White sand grain 6063 aluminum |
| Installation platform specifications/materials | 236*117*10mm Oxidized Bright White 6061 Aluminum Plate |
| Handle specifications/materials | 230*175mm White Sand Pattern Q235 Steel |
| Handrail specifications/materials | φ30*222mm oxidized bright white 6063 aluminum |
| Basket specifications/materials | 330*210*135mm White sand pattern Q235 steel |
| Humidifier pendant specifications/materials | 55*40*16mm sandblasted oxidized bright white 6063 aluminum |
| Humidifier mounting plate specifications/materials | 68*55*4mm White sand pattern Q235 steel |
| Bar specifications/materials | 400*25*10mm oxidized bright white 6061 aluminum plate |
| Power adapter specifications/materials | 135*72*45mm White sand pattern Q235 steel |
| Caster Specifications/Material | 4-inch casters (5 brakes） 100*130mm PA6 nylon+TPE white/gray |
| Load-bearing | 20Kg |
| Maximum push speed | 2m/s |
| Maximum tilt angle | 15° |
| Cable hanger specifications/materials | |
| Partition quantity/specification/material | |
| Monitor stand specifications/materials | |
| Oxygen cylinder rack specifications/materials | |
| Specifications/materials of strap bracket | |
| Drawer specifications/materials | |
| Optional | |
| Packing box specifications | 900*570*210mm Double layer Mecca 170g |
| net weight | 11.9Kg |
| Gross Weight | 16Kg |
| Robotic Arm Specifications | |
| Robotic Arm | High-end robotic arm |
| model | SA-03 |
| Material Code | 2.01.02.0003 |
| color | Nickel Plating |
| Material | 6063 Aluminum |
| Arm load | 5Kg |
| angle | 0°-210° |
| length | 1380mm |
| diameter | φ14 |
| Thread specification | M14*1.5 |
| Coil size/material | φ10*145mm chrome-plated Q235 steel |
| Coil load bearing | 0.75Kg |
| Hook Material | nylon |
| Installation | Thread |
| Number of joints | 2 sections |
| Joint structure | Aluminum alloy joints |
| weight | 1.26Kg |
| Packing size | 530*95*80mm |
| Gross Weight | 1.44Kg |
1. The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.
2. Standard trolleys are in stock, and the minimum order is one piece.
3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.
-
