B14 – Ventilator Trolley

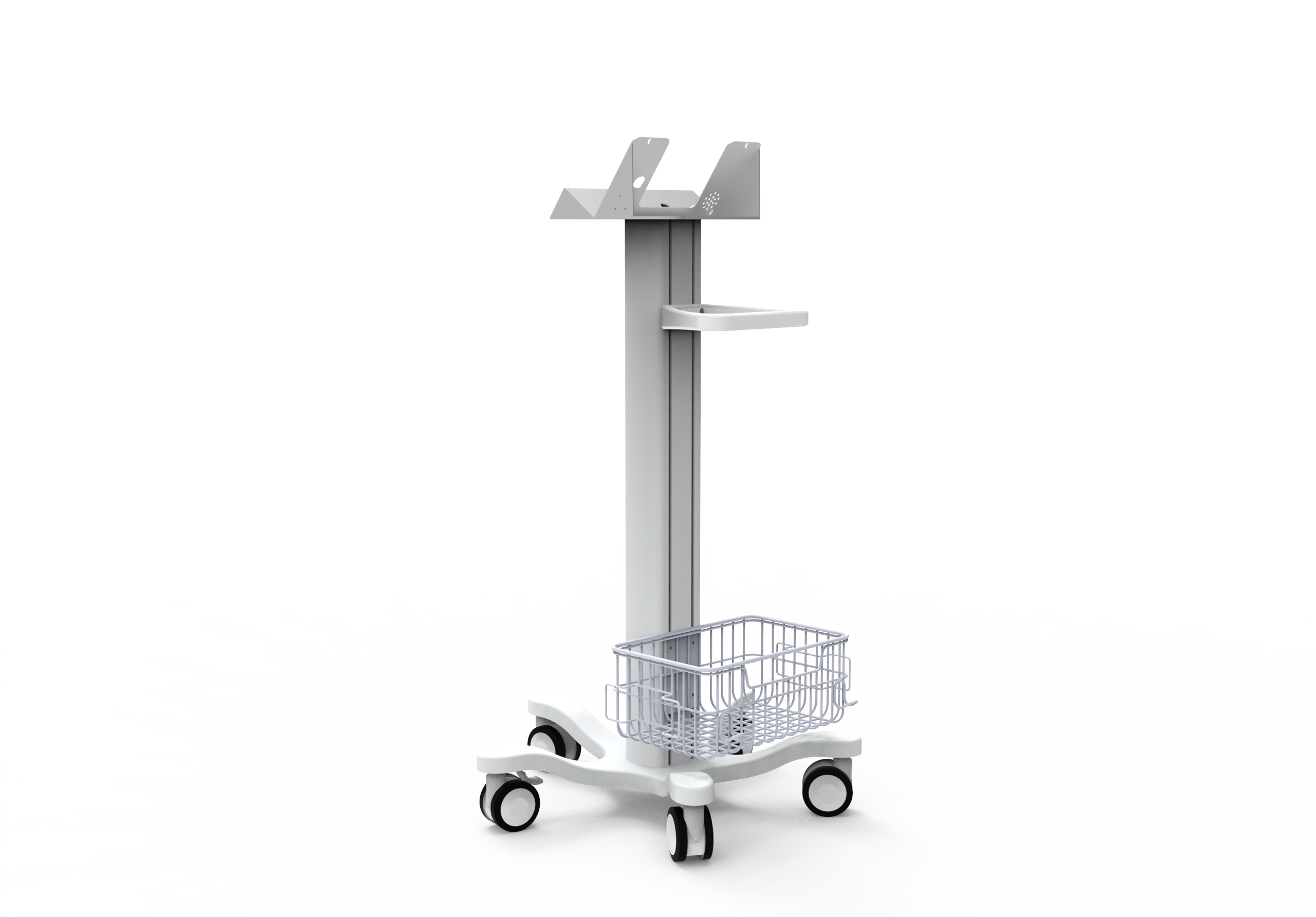

Ventilator Trolley
1. The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.
2. Standard trolleys are in stock, and the minimum order is one piece.
3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.
| Trolley | Yian 510S trolley |
| model | B14 |
| Material Code | 1.01.01.0030 |
| color | White sand texture |
| Trolley specifications/materials | φ600*1010mm White sand grain 6063 aluminum + Q235 steel + ABS plastic |
| Base specifications/materials | φ600*70mm White sand grain 6063 aluminum |
| Column specifications/materials | 78*100*810mm White sand grain 6063 aluminum |
| Installation platform specifications/materials | 263*173*113mm Oxidized Bright White 6061 Aluminum Plate |
| Handle specifications/materials | 210*170*25mm Grey ABS plastic |
| Basket specifications/materials | 330*210*135mm White sand pattern Q235 steel |
| Humidifier pendant specifications/materials | 70*55*15mm Grey ABS plastic |
| Caster Specifications/Material | 3-inch caster (2 brakes, 3 universal) 50*90mm PA+PU white and black |
| Humidifier mounting plate specifications/materials | |
| Handrail specifications/materials | |
| Cable hanger specifications/materials | |
| Bar specifications/materials | |
| Horizontal mounting plate specifications/materials | |
| Infusion stand hook specifications/materials | |
| Partition quantity/specification/material | |
| Monitor stand specifications/materials | |
| Drawer specifications/materials | |
| Oxygen cylinder rack specifications/materials | |
| Specifications/materials of strap bracket | |
| Load-bearing | 30Kg |
| Maximum push speed | 2m/s |
| Maximum tilt angle | 15° |
| Optional | |
| Packing box specifications | 950*700*170mm Double layer Mecca 170g |
| net weight | 11.35Kg |
| Gross Weight | 15.55Kg |
| Robotic Arm | |
| Robotic Arm | Yian threaded aluminum robot arm |
| model | SA-06 |
| Material Code | 2.01.02.0006 |
| color | Oxidation Whitening |
| Material | 6063 Aluminum |
| Arm load | 5Kg |
| angle | 0°-210° |
| length | 1340mm |
| diameter | φ14 |
| Thread specification | M14*1.5 |
| Coil size/material | φ10*145mm chrome-plated Q235 steel |
| Coil load bearing | 5kg |
| Hook Material | nylon |
| Installation | Thread |
| Number of joints | 2 sections |
| Joint structure | Zinc alloy joints |
| weight | 1Kg |
| Packing size | 530*95*80mm |
| Gross Weight | 1.2Kg |
1. The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.
2. Standard trolleys are in stock, and the minimum order is one piece.
3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.
