B17 – FABIAN VENTILATOR TROLLEY

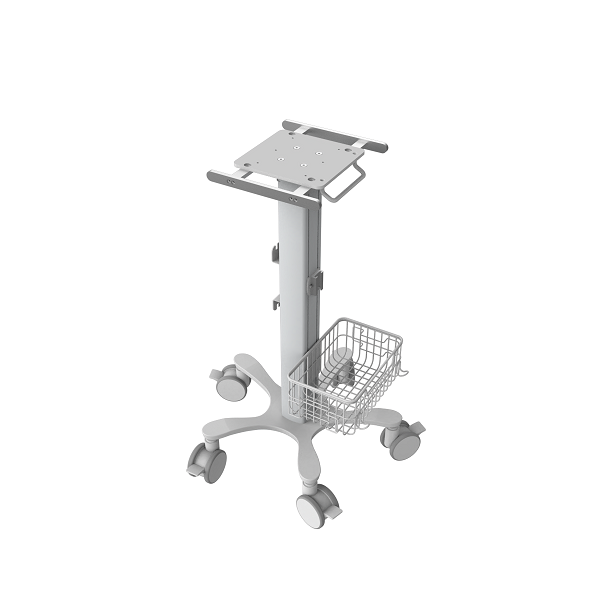

Fabian ventilator trolley
1. The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.
2. Standard trolleys are in stock, and the minimum order is one piece.
3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.
| Trolley | Feiping trolley (small) |
| model | B17 |
| Material Code | 1.01.01.0017 |
| color | White sand texture |
| Trolley specifications/materials | φ600*890mm White sand grain 6063 aluminum + Q235 steel |
| Base specifications/materials | φ600*70mm White sand grain 6063 aluminum |
| Column specifications/materials | 78*100*810mm White sand grain 6063 aluminum |
| Installation platform specifications/materials | 240*225*8mm oxidized bright white 6061 aluminum plate |
| Handle specifications/materials | 170*35*45 Black 6063 aluminum |
| Basket specifications/materials | 330*210*135mm White sand pattern Q235 steel |
| Robotic arm bar specifications/materials | 300*25*10mm oxidized bright white 6061 aluminum plate |
| Humidifier pendant specifications/materials | 55*40*16mm sandblasted oxidized bright white 6063 aluminum |
| Humidifier mounting plate specifications/materials | 68*55*4mm White sand pattern Q235 steel |
| Cable hanger specifications/materials | 204*65*34mm White sand grain Q235 steel |
| Caster Specifications/Material | 4-inch casters (5 brakes） 100*130mm PA6 nylon+TPE white/gray |
| Handrail specifications/materials | |
| Bar specifications/materials | |
| Horizontal mounting plate specifications/materials | |
| Infusion stand hook specifications/materials | |
| Partition quantity/specification/material | |
| Monitor stand specifications/materials | |
| Drawer specifications/materials | |
| Oxygen cylinder rack specifications/materials | |
| Specifications/materials of strap bracket | |
| Load-bearing | 30Kg |
| Maximum push speed | 2m/s |
| Maximum tilt angle | 15° |
| Optional | |
| Packing box specifications | 900*570*210mm Double layer Mecca 170g |
| net weight | 12Kg |
| Gross Weight | 14.6Kg |
| Robotic Arm | |
| Robotic Arm Specifications | |
| Robotic Arm | Steel quick-release robot arm |
| model | SA-02 |
| Material Code | 2.01.02.0002 |
| color | 304 stainless steel natural color |
| Material | 304 stainless steel natural color |
| Arm load | 5Kg |
| angle | 0°-210° |
| length | 970mm |
| diameter | φ12 |
| Quick-plug specifications/materials | φ16*65mm |
| Thread specification | φ14*1.5mm |
| Coil size/material | φ10*140mm chrome-plated Q235 steel |
| Coil load bearing | 0.75Kg |
| Hook Material | 6061 Aluminum |
| Installation | Quick Insert |
| Number of joints | 3 sections |
| Joint structure | Stainless steel joints |
| weight | 1.1Kg |
| Packing size | 530*95*80mm |
| Gross Weight | 1.23Kg |
1. The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.
2. Standard trolleys are in stock, and the minimum order is one piece.
3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.
-
