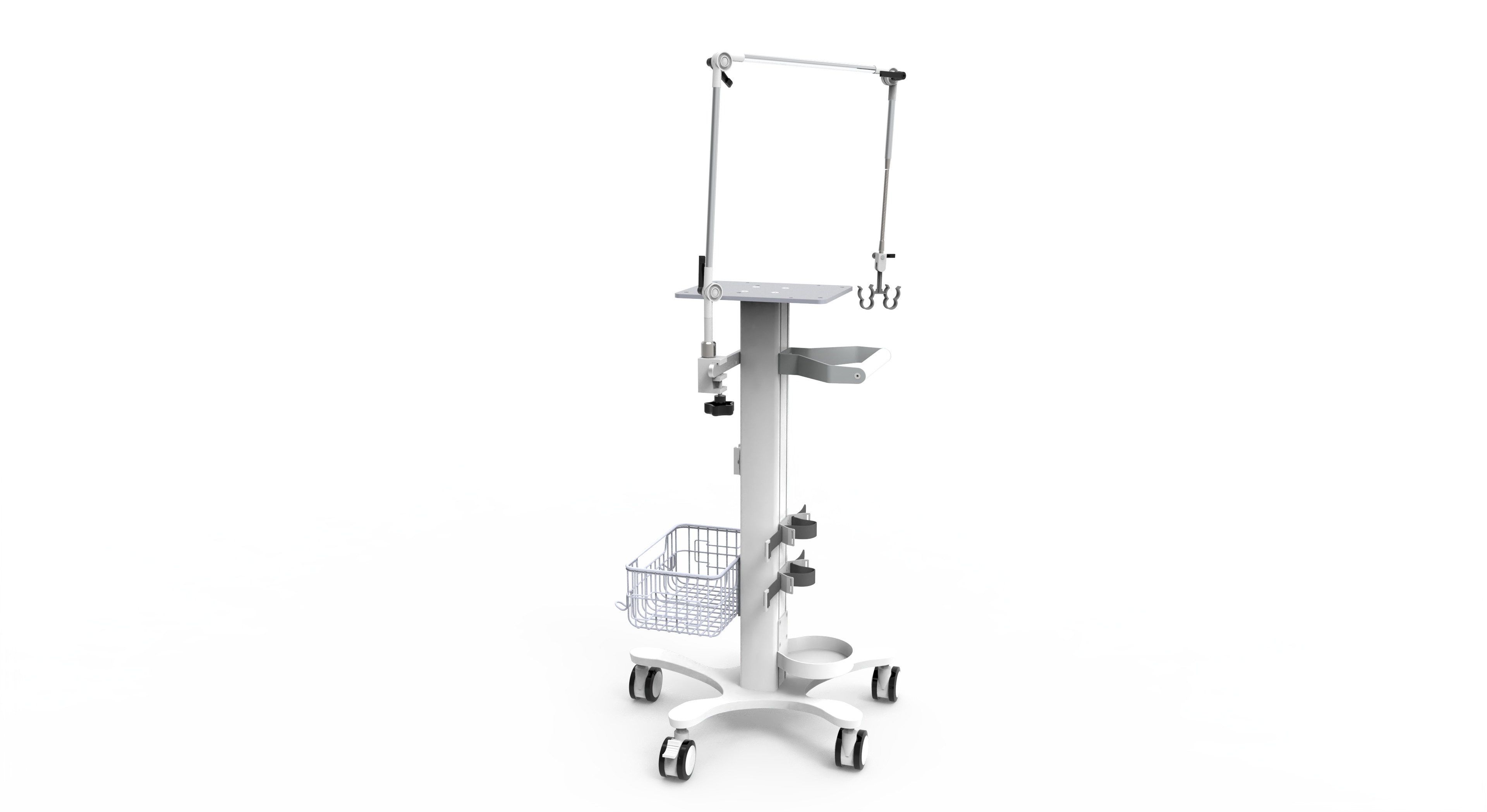

B20 – Ventilator Trolley with basket and oxygen tank
B20 – Ventilator Trolley with basket and oxygen tank
1. The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.
2. Standard trolleys are in stock, and the minimum order is one piece.
3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.
| Trolley | Best trolley |
| model | B20 |
| Material Code | 1.01.01.0020 |
| color | White sand texture |
| Trolley specifications/materials | φ600*890mm White sand grain 6063 aluminum + Q235 steel |
| Base specifications/materials | φ600*70mm White sand grain 6063 aluminum |
| Column specifications/materials | 78*100*810mm White sand grain 6063 aluminum |
| Installation platform specifications/materials | 300*230*8mm oxidized bright white 6061 aluminum plate |
| Handle specifications/materials | 230*175mm White sand grain Q235 steel |
| Handrail specifications/materials | φ30*222mm oxidized bright white 6063 aluminum |
| Bar specifications/materials | 400*25*10mm oxidized bright white 6061 aluminum plate |
| Basket specifications/materials | 330*210*135mm White sand pattern Q235 steel |
| Humidifier pendant specifications/materials | 55*40*16mm sandblasted oxidized bright white 6063 aluminum |
| Humidifier mounting plate specifications/materials | 68*55*4mm White sand pattern Q235 steel |
| Cable hanger specifications/materials | 204*65*34mm White sand grain Q235 steel |
| Caster Specifications/Material | 3-inch caster (2 brakes, 3 universal) 50*90mm PA+PU white and black |
| Horizontal mounting plate specifications/materials | |
| Infusion stand hook specifications/materials | |
| Partition quantity/specification/material | |
| Monitor stand specifications/materials | |
| Drawer specifications/materials | |
| Oxygen cylinder rack specifications/materials | |
| Specifications/materials of strap bracket | |
| Load-bearing | 30Kg |
| Maximum push speed | 2m/s |
| Maximum tilt angle | 15° |
| Optional | |
| Packing box specifications | 900*570*210mm Double layer Mecca 170g |
| net weight | 14.9Kg |
| Gross Weight | 17.5Kg |
| Robotic Arm | |
| Robotic Arm | Threaded Aluminum Robot Arm |
| model | SA-01 |
| Material Code | 2.01.02.0001 |
| color | Sandblasting oxidation bright white |
| Material | 6063 Aluminum |
| Arm load | 5Kg |
| angle | 0°-210° |
| length | 1450mm |
| diameter | φ14 |
| Thread specification | M14*1.5 |
| Coil size/material | φ10*145mm chrome-plated Q235 steel |
| Coil load bearing | 0.75Kg |
| Hook Material | nylon |
| Installation | Thread |
| Number of joints | 3 sections |
| Joint structure | Zinc alloy joints |
| weight | 1.15Kg |
| Packing size | 530*95*80mm |
| Gross Weight | 1.33Kg |
1. The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.
2. Standard trolleys are in stock, and the minimum order is one piece.
3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.
