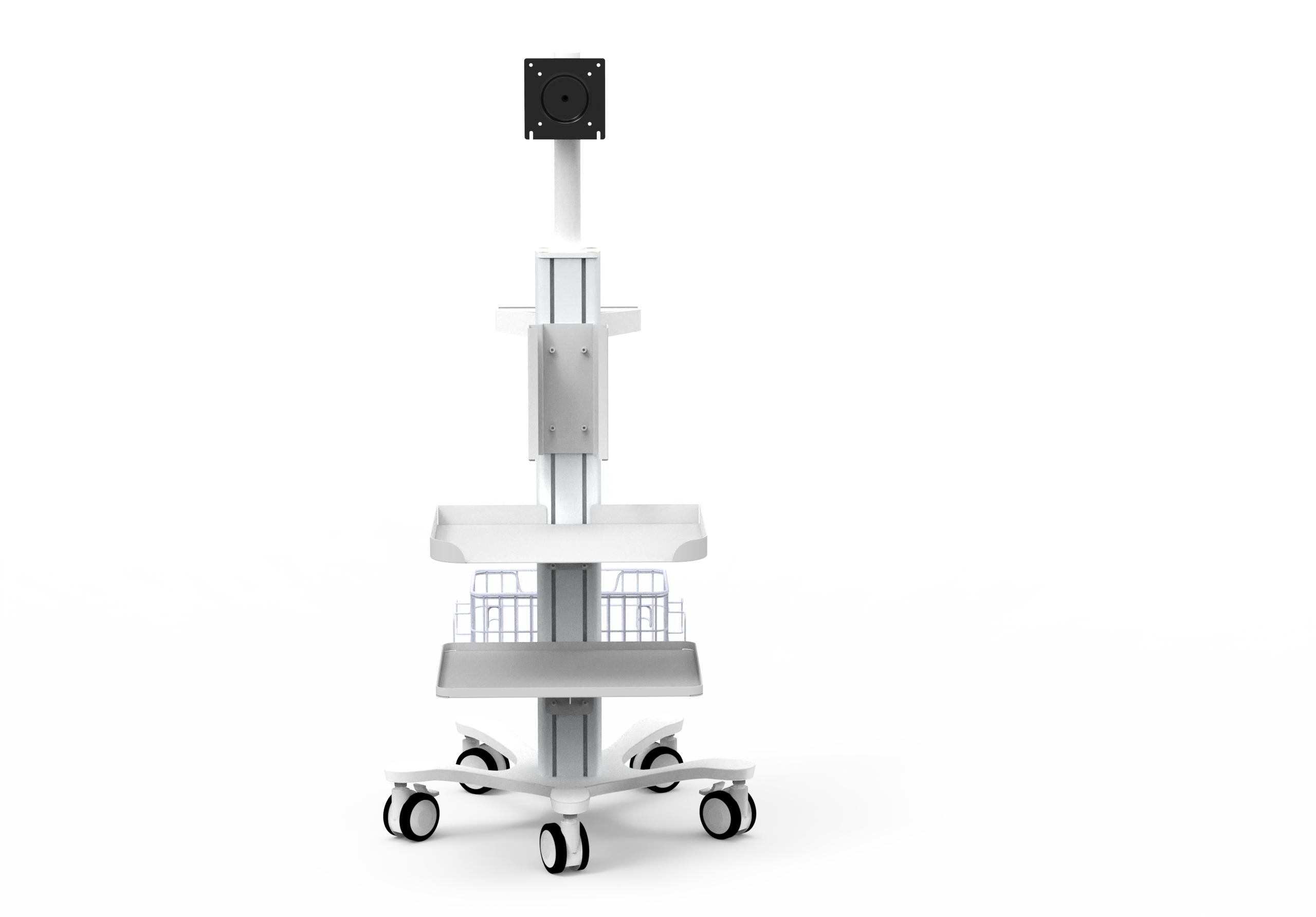

Non-invasive cardiac output trolley (ICON) trolley -B21
B21 – Non-invasive cardiac output trolley (ICON) trolley
Non-invasive cardiac output trolley (ICON) trolley
1. The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.
2. Standard trolleys are in stock, and the minimum order is one piece.
3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.
| Trolley | Non-invasive cardiac output trolley (ICON) trolley |
| model | B21 |
| Material Code | 1.01.01.0021 |
| color | White sand texture |
| Trolley specifications/materials | φ600*890mm White sand grain 6063 aluminum + Q235 steel |
| Base specifications/materials | φ600*70mm White sand grain 6063 aluminum |
| Column specifications/materials | 78*100*810mm White sand grain 6063 aluminum |
| Installation platform specifications/materials | 360*265*8mm oxidized bright white 6061 aluminum plate |
| Handle specifications/materials | 230*175mm White sand grain Q235 steel |
| Handrail specifications/materials | φ30*222mm oxidized bright white 6063 aluminum |
| Basket specifications/materials | 330*210*135mm White sand pattern Q235 steel |
| Monitor stand specifications/materials | φ40*300mm White sand pattern Q235 steel |
| Machine box specifications/materials | 203*121*59mm White sand pattern Q235 steel |
| Shelf/Specifications/Material | 405*305*31.5mm White sand grain Q235 steel |
| Printer/Specifications/Material | 390*310*15mm White sand pattern Q235 steel |
| Humidifier pendant specifications/materials | 55*40*16mm sandblasted oxidized bright white 6063 aluminum |
| Humidifier mounting plate specifications/materials | 68*55*4mm White sand pattern Q235 steel |
| Caster Specifications/Material | 3-inch caster (2 brakes, 3 universal) 50*90mm PA+PU white and black |
| Cable hanger specifications/materials | |
| Bar specifications/materials | |
| Horizontal mounting plate specifications/materials | |
| Infusion stand hook specifications/materials | |
| Drawer specifications/materials | |
| Oxygen cylinder rack specifications/materials | |
| Specifications/materials of strap bracket | |
| Load-bearing | 30Kg |
| Maximum push speed | 2m/s |
| Maximum tilt angle | 15° |
| Optional | |
| Packing box specifications | 900*570*210mm Double layer Mecca 170g |
| net weight | 20Kg |
| Robotic Arm | 22.6Kg |
1. The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.
2. Standard trolleys are in stock, and the minimum order is one piece.
3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.
