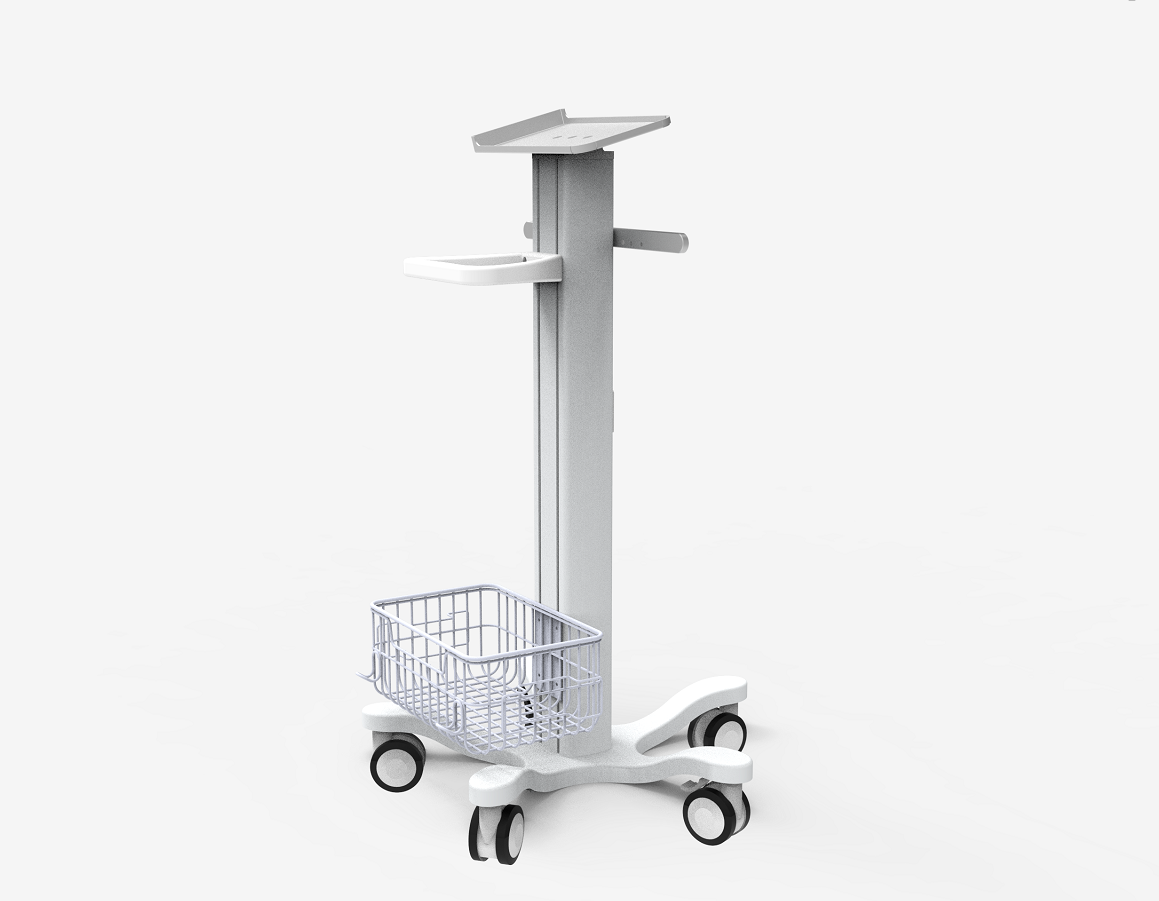

YUWELL 730 CART - B22
B22 – YUWELL 730 VENTILATOR CART
YUWELL 730 CART – B22
1. The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.
2. Standard trolleys are in stock, and the minimum order is one piece.
3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.
| Trolley | YUWELL 730 CART |
| model | B22 |
| Material Code | 1.01.01.0022 |
| color | White sand texture |
| Trolley specifications/materials | φ600*890mm White sand grain 6063 aluminum + Q235 steel |
| Base specifications/materials | φ600*70mm White sand grain 6063 aluminum |
| Column specifications/materials | 78*100*810mm White sand grain 6063 aluminum |
| Installation platform specifications/materials | mm White sand grain Q235 steel |
| Handle specifications/materials | 210*170*25mm Grey ABS plastic |
| Bar specifications/materials | 400*25*10mm oxidized bright white 6061 aluminum plate |
| Basket specifications/materials | 330*210*135mm White sand pattern Q235 steel |
| Humidifier pendant specifications/materials | 70*55*15mm Grey ABS plastic |
| Cable hanger specifications/materials | 204*65*34mm White sand grain Q235 steel |
| Caster Specifications/Material | 3-inch caster (2 brakes, 3 universal) 50*90mm PA+PU white and black |
| Bar specifications/materials | |
| Handrail specifications/materials | |
| Humidifier mounting plate specifications/materials | |
| Horizontal mounting plate specifications/materials | |
| Infusion stand hook specifications/materials | |
| Partition quantity/specification/material | |
| Monitor stand specifications/materials | |
| Drawer specifications/materials | |
| Oxygen cylinder rack specifications/materials | |
| Specifications/materials of strap bracket | |
| Load-bearing | 30Kg |
| Maximum push speed | 2m/s |
| Maximum tilt angle | 15° |
| Optional | |
| Packing box specifications | 900*570*210mm Double layer Mecca 170g |
| net weight | 13.4Kg |
| Gross Weight | 16Kg |
| Robotic Arm | |
| Robotic Arm Specifications | |
| Robotic Arm | Threaded Aluminum Robot Arm |
| model | SA-01 |
| Material Code | 2.01.02.0001 |
| color | Sandblasting oxidation bright white |
| Material | 6063 Aluminum |
| Arm load | 5Kg |
| angle | 0°-210° |
| length | 1450mm |
| diameter | φ14 |
| Thread specification | M14*1.5 |
| Coil size/material | φ10*145mm chrome-plated Q235 steel |
| Coil load bearing | 0.75Kg |
| Hook Material | nylon |
| Installation | Thread |
| Number of joints | 3 sections |
| Joint structure | Zinc alloy joints |
| weight | 1.15Kg |
| Packing size | 530*95*80mm |
| Gross Weight | 1.33Kg |
1. The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.
2. Standard trolleys are in stock, and the minimum order is one piece.
3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.
