B24 – Ventilator Trolley – Monnal T50 Trolley

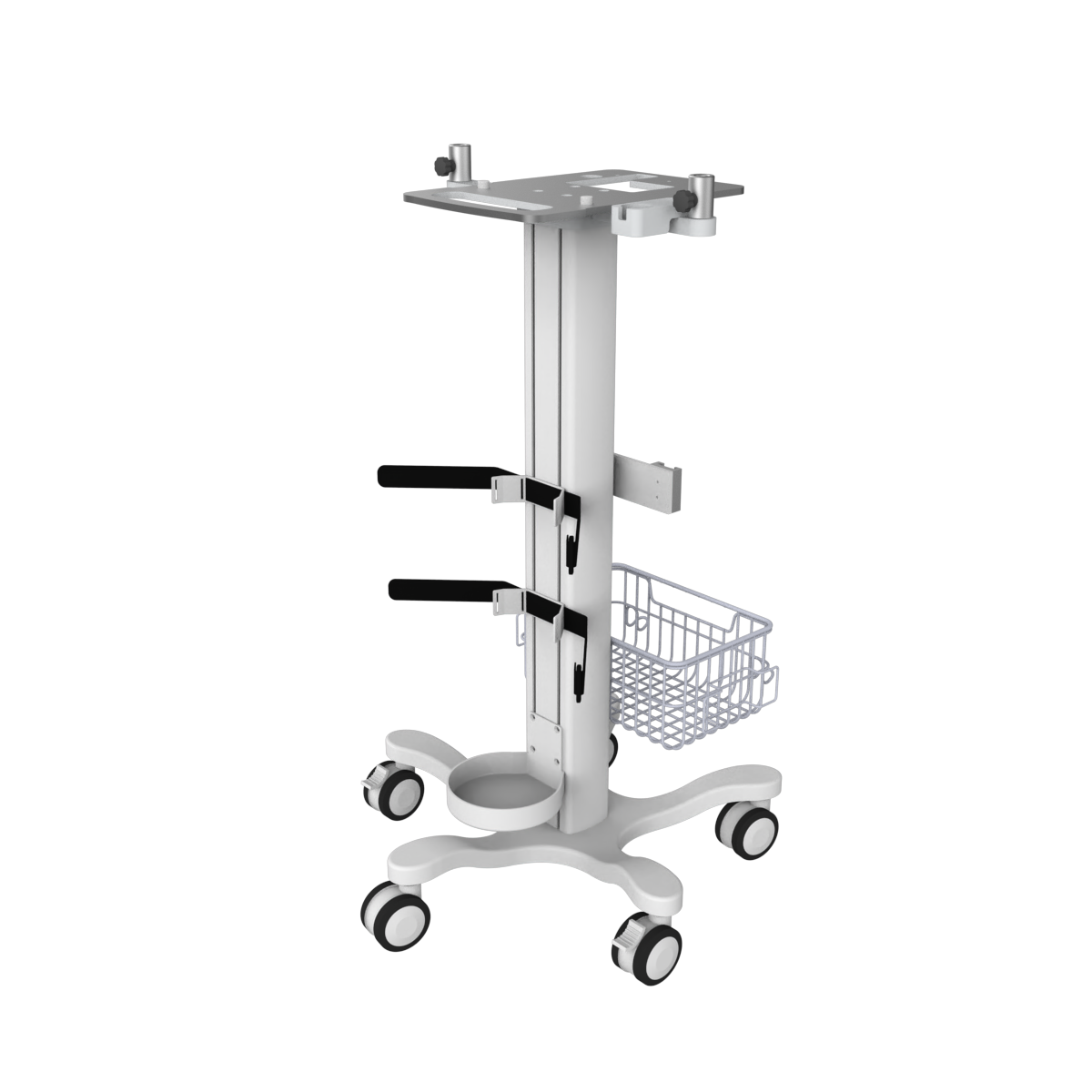

Ventilator Trolley – Monnal T50 Trolley
1. The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.
2. Standard trolleys are in stock, and the minimum order is one piece.
3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.
| Trolley | Tianma T50 trolley |
| model | B24 |
| Material Code | 1.01.01.0024 |
| color | White sand texture |
| Trolley specifications/materials | φ600*890mm White sand grain 6063 aluminum + Q235 steel |
| Base specifications/materials | φ600*70mm White sand grain 6063 aluminum |
| Column specifications/materials | 78*100*810mm White sand grain 6063 aluminum |
| Installation platform specifications/materials | 360*240*8mm oxidized bright white 6061 aluminum plate |
| Basket specifications/materials | 330*210*135mm White sand pattern Q235 steel |
| Humidifier pendant specifications/materials | 55*40*16mm sandblasted oxidized bright white 6063 aluminum |
| Humidifier mounting plate specifications/materials | 68*55*4mm White sand pattern Q235 steel |
| Robot arm mounting plate specifications/materials | 500*35*18mm Oxidized 6061 aluminum |
| Robot arm mounting column specifications/materials | φ28*45mm Natural color 304 stainless steel |
| Oxygen cylinder rack specifications/materials | 150*99*3mm White sand pattern Q235 steel |
| Specifications/materials of strap bracket | 120*40*2.5mm White sand pattern Q235 steel |
| Caster Specifications/Material | 3-inch caster (2 brakes, 3 universal) 50*90mm PA+PU white and black |
| Cable hanger specifications/materials | |
| Bar specifications/materials | |
| Handle specifications/materials | |
| Handrail specifications/materials | |
| Horizontal mounting plate specifications/materials | |
| Infusion stand hook specifications/materials | |
| Partition quantity/specification/material | |
| Monitor stand specifications/materials | |
| Drawer specifications/materials | |
| Load-bearing | 30Kg |
| Maximum push speed | 2m/s |
| Maximum tilt angle | 15° |
| Optional | |
| Packing box specifications | 900*570*210mm Double layer Mecca 170g |
| net weight | 17Kg |
| Robotic Arm | 19.6Kg |
| Robotic Arm Specifications | |
| Robotic Arm | Steel quick-release robot arm |
| model | SA-02 |
| Material Code | 2.01.02.0002 |
| color | 304 stainless steel natural color |
| Material | 304 stainless steel natural color |
| Arm load | 5Kg |
| angle | 0°-210° |
| length | 1380mm |
| diameter | φ12 |
| Quick-plug specifications/materials | φ16*65mm |
| Thread specification | φ14*1.5mm |
| Coil size/material | φ10*140mm chrome-plated Q235 steel |
| Coil load bearing | 0.75Kg |
| Hook Material | 6061 Aluminum |
| Installation | Quick Insert |
| Number of joints | 3 sections |
| Joint structure | Stainless steel joints |
| weight | 1.15Kg |
| Packing size | 530*95*80mm |
| Gross Weight | 1.33Kg |
1. The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.
2. Standard trolleys are in stock, and the minimum order is one piece.
3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.
-
