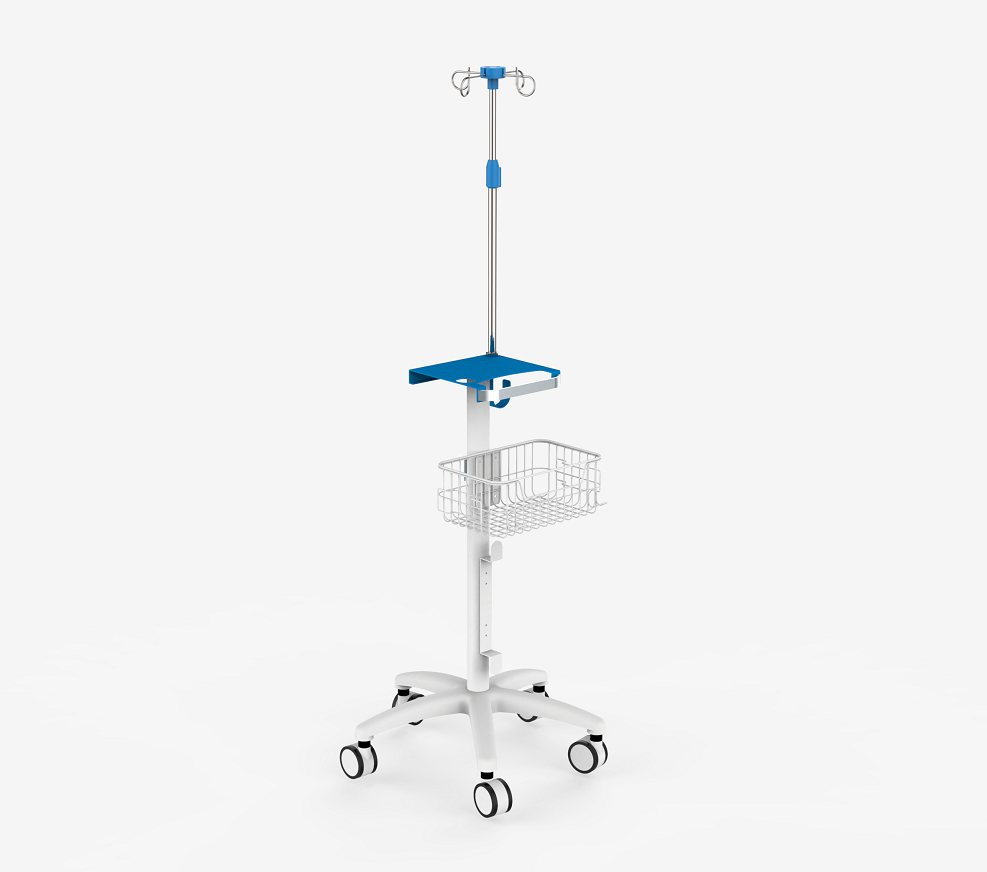

Ventilator SIPAP Trolley with circuit hanger and basket - C01
C01 – VENTILATOR TROLLEY – SIPAP TROLLEY
Ventilator SIPAP Trolley with circuit hanger and basket – C01
1. The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.
2. Standard trolleys are in stock, and the minimum order is one piece.
3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.
| Trolley | Easy SIPAP Trolley |
| model | C01 |
| Material Code | 1.01.01.0031 |
| color | White sand grain + blue wrinkle |
| Trolley specifications/materials | φ600*960 mm White sand texture6063Aluminum+Q235 steel |
| Base specifications/materials | φ600*80 mm White sand texture 6063 Aluminum |
| Column specifications/materials | φ51*800mm White sand pattern Q235 steel |
| Installation platform specifications/materials | 230*245*32mm Blue wrinkle Q235Steel |
| Cable hanger specifications/materials | 280*35*2mm White sand pattern Q235 steel |
| Handle specifications/materials | 240*18*6mm Natural color 6063 aluminum |
| Humidifier pendant specifications/materials | 55*40*16mm sandblasted oxidized bright white 6063 aluminum |
| Infusion stand hook specifications/materials | φ19*490*200mm 304 stainless steel |
| Basket specifications/materials | 330*210*135mm White sand pattern Q235 steel |
| Caster Specifications/Material | 3-inch caster (2 brakes, 3 universal) 50*90mm PA+PU white and black |
| Humidifier mounting plate specifications/materials | |
| Handrail specifications/materials | |
| Handle mounting plate | |
| Partition quantity/specification/material | |
| Monitor stand specifications/materials | |
| Drawer specifications/materials | |
| Oxygen cylinder rack specifications/materials | |
| Specifications/materials of strap bracket | |
| Load-bearing | 15Kg |
| Maximum push speed | 2m/s |
| Maximum tilt angle | 15° |
| Optional | |
| Packing box specifications | 900*570*210mm Double layer Mecca 170g |
| net weight | 18.5kg |
| Gross Weight | 21kg |
1. The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.
2. Standard trolleys are in stock, and the minimum order is one piece.
3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.
