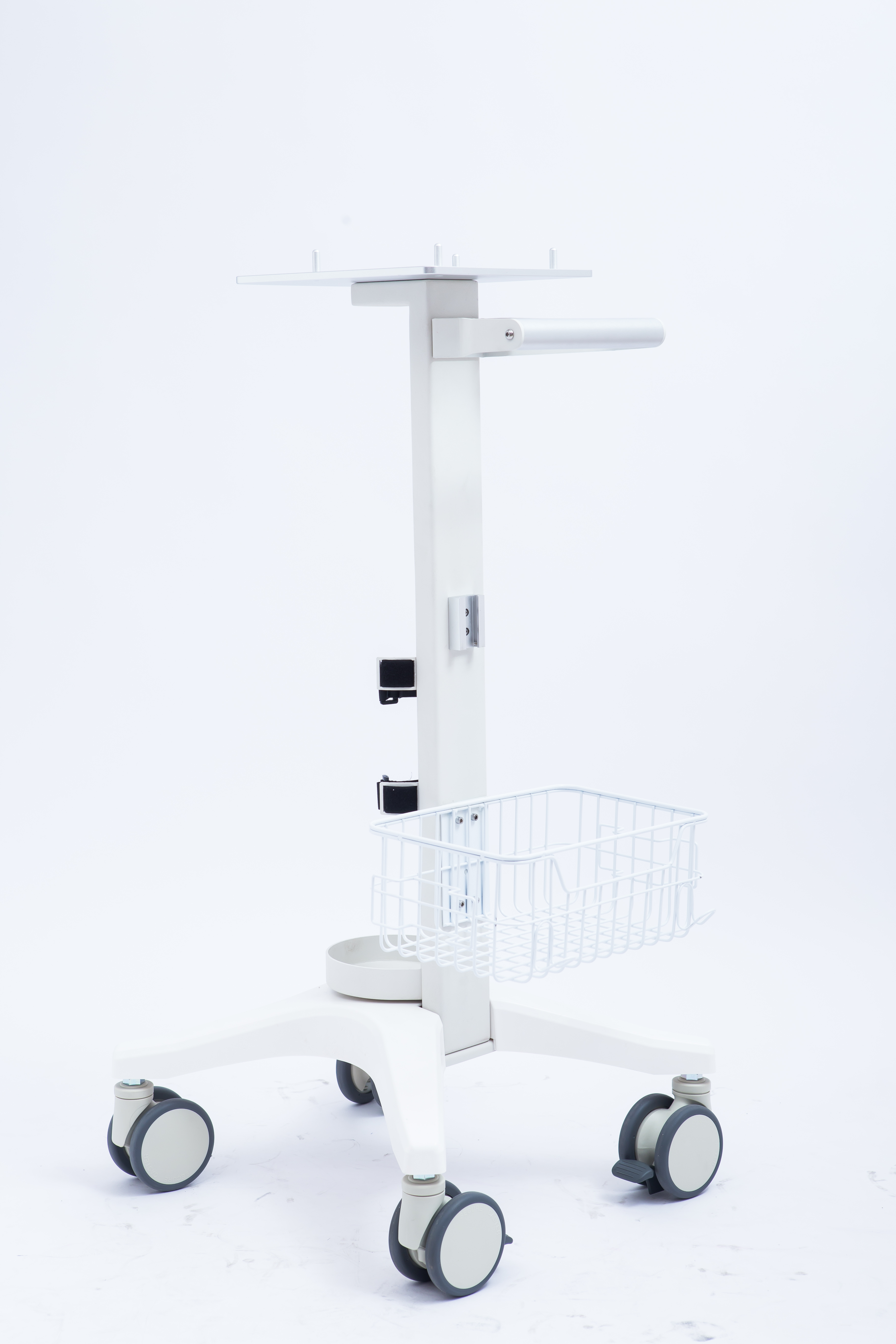

SPIRAX Ventilator trolley with oxygen bottle fixed and basket - D02
D02 – VENTILATOR TROLLEY SPIRAX TROLLEY
SPIRAX Ventilator trolley with oxygen bottle fixed and basket – D02
1. The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.
2. Standard trolleys are in stock, and the minimum order is one piece.
3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.
| Trolley | Spirax Trolley |
| model | D02 |
| Material Code | 1.01.01.0033 |
| color | White sand texture |
| Trolley specifications/materials | 490*490*980mm White sand pattern6063Aluminum+Q235 steel + ABS plastic |
| Base specifications/materials | 490*490*60mm WhiteABSplastic |
| Column specifications/materials | 155*80*815mm White sand pattern Q235 steel |
| Installation platform specifications/materials | 280*160*8mm Blue wrinkle Q235Steel |
| Handle specifications/materials | 230*175mm White sand grain Q235 steel |
| Handrail specifications/materials | φ30*222mm oxidized bright white 6063 aluminum |
| Humidifier pendant specifications/materials | 55*40*16mm sandblasted oxidized bright white 6063 aluminum |
| Basket specifications/materials | 330*210*135mm White sand pattern Q235 steel |
| Oxygen cylinder rack specifications/materials | 150*99*3mm White sand pattern Q235 steel |
| Specifications/materials of strap bracket | 120*40*2.5mm White sand pattern Q235 steel |
| Caster Specifications/Material | 4-inch casters (4 brakes） 100*130mm PA6 nylon+TPE white/gray |
| Infusion stand hook specifications/materials | |
| Cable hanger specifications/materials | |
| Humidifier mounting plate specifications/materials | |
| Handle mounting plate | |
| Partition quantity/specification/material | |
| Monitor stand specifications/materials | |
| Drawer specifications/materials | |
| Oxygen cylinder rack specifications/materials | |
| Specifications/materials of strap bracket | |
| Load-bearing | 15Kg |
| Maximum push speed | 2m/s |
| Maximum tilt angle | 15° |
| Optional | |
| Packing box specifications | 900*570*210mm Double layer Mecca 170g |
| net weight | 11.2kg |
| Gross Weight | 14kg |
1. The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.
2. Standard trolleys are in stock, and the minimum order is one piece.
3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.
