D03 – ECG Trolley

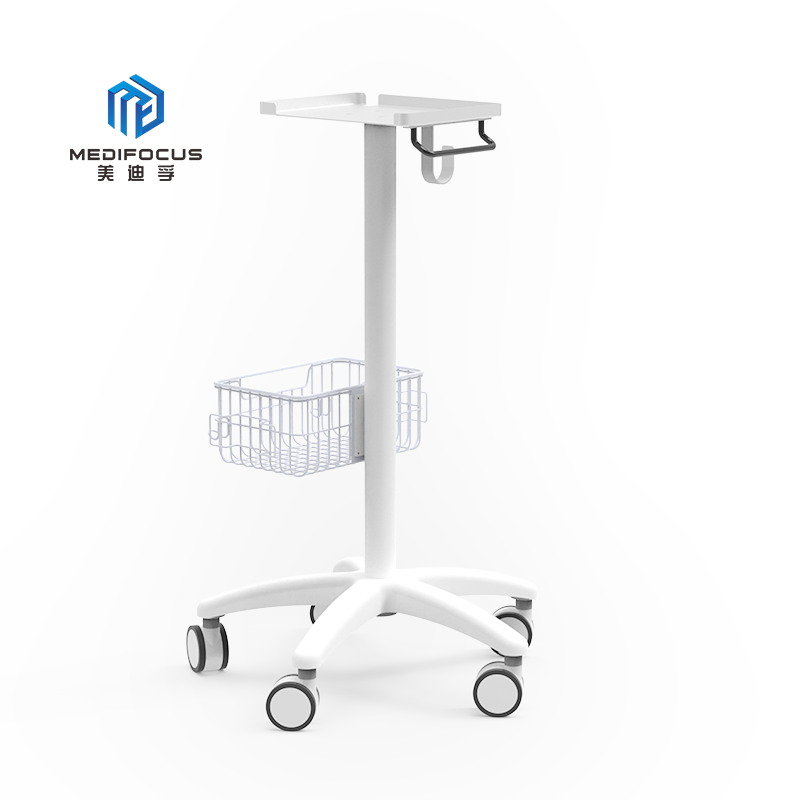

ECG machine trolley – D03
1. The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.
2. Standard trolleys are in stock, and the minimum order is one piece.
3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.
| Trolley | ECG Trolley |
| model | D03 |
| Material Code | 1.01.01.0034 |
| color | White sand texture |
| Trolley specifications/materials | φ600*890mm White sand pattern6063Aluminum+Q235 Steel |
| Base specifications/materials | φ6000*80 mm White sand texture 6063 Aluminum |
| Column specifications/materials | φ51*800mm White sand pattern Q235 steel |
| Installation platform specifications/materials | 310*230*20mm White sand pattern Q235Steel |
| Handle specifications/materials | 170*35*45 Black 6063 aluminum |
| Humidifier pendant specifications/materials | 55*40*16mm sandblasted oxidized bright white 6063 aluminum |
| Infusion stand hook specifications/materials | φ19*490*200mm 304 stainless steel |
| Basket specifications/materials | 330*210*135mm White sand pattern Q235 steel |
| Caster Specifications/Material | 3-inch caster (2 brakes, 3 universal) 50*90mm PA+PU white and black |
| Cable hanger specifications/materials | |
| Humidifier mounting plate specifications/materials | |
| Handrail specifications/materials | |
| Handle mounting plate | |
| Partition quantity/specification/material | |
| Monitor stand specifications/materials | |
| Drawer specifications/materials | |
| Oxygen cylinder rack specifications/materials | |
| Specifications/materials of strap bracket | |
| Load-bearing | 15Kg |
| Maximum push speed | 2m/s |
| Maximum tilt angle | 15° |
| Optional | |
| Packing box specifications | 900*570*210mm Double layer Mecca 170g |
| net weight | 18.5kg |
| Gross Weight | 21kg |
1. The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.
2. Standard trolleys are in stock, and the minimum order is one piece.
3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.
