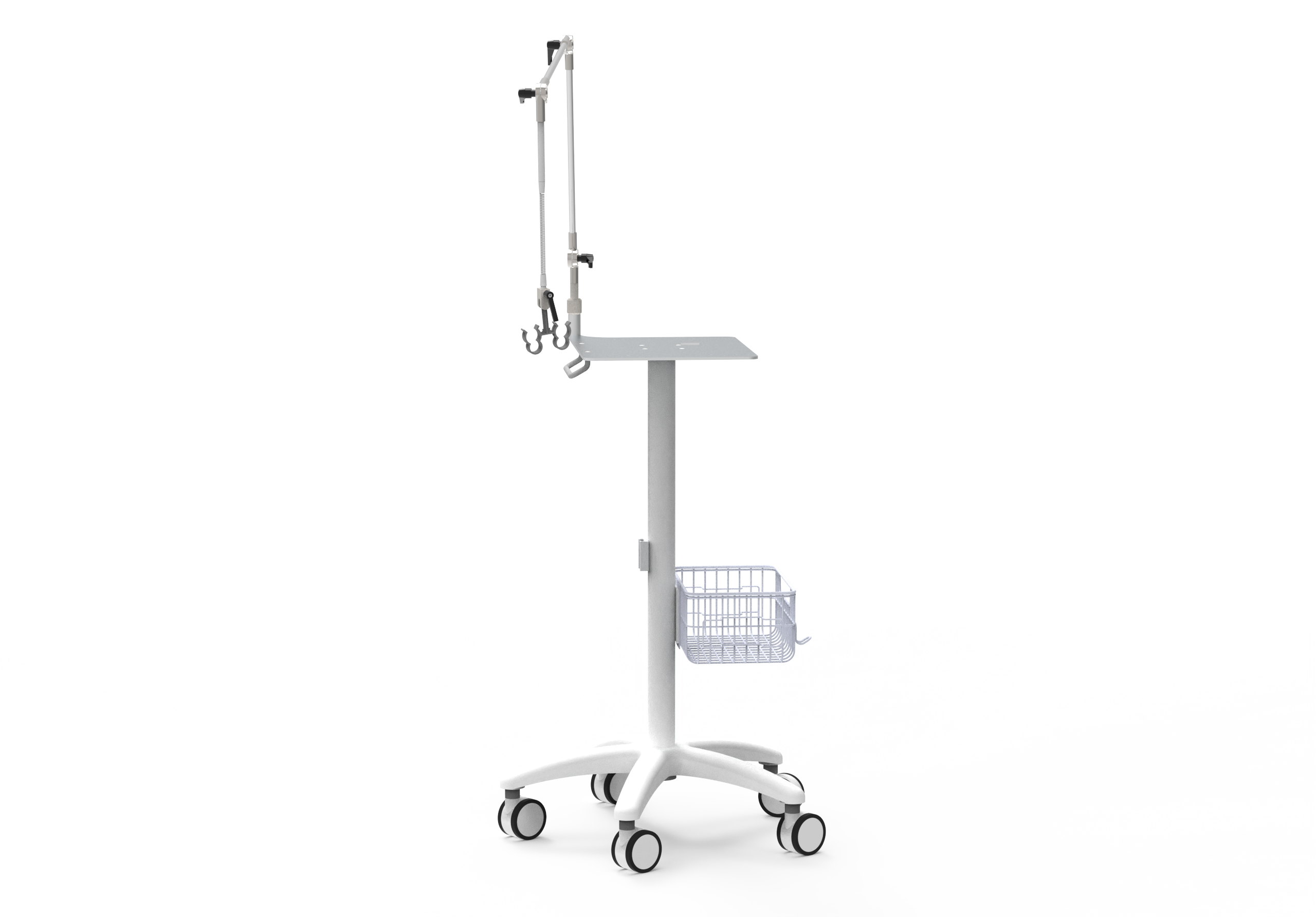

D04 – Simple Ventilator Trolley
Simple Ventilator trolley – D04
1. The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.
2. Standard trolleys are in stock, and the minimum order is one piece.
3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.
| Trolley | Simple ventilator Trolley |
| model | D04 |
| Material Code | 1.01.01.0072 |
| color | White sand texture |
| Trolley specifications/materials | φ600*960 mm White sand texture6063Aluminum+Q235 Steel |
| Base specifications/materials | φ600*80 mm White sand texture 6063 Aluminum |
| Column specifications/materials | φ51*800mm White sand pattern Q235 steel |
| Humidifier mounting plate specifications/materials | 55*40*16mm sandblasted oxidized bright white 6063 aluminum |
| Installation platform specifications/materials | 400*314*5mm White sand pattern Q235 steel |
| Handle specifications/materials | 170*35*45 Black 6063 aluminum |
| Basket specifications/materials | 330*210*135mm White sand pattern Q235 steel |
| Caster Specifications/Material | 3-inch caster (2 brakes, 3 universal) 50*90mm PA+PU white and black |
| Humidifier pendant specifications/materials | |
| Cable hanger specifications/materials | |
| Infusion stand hook specifications/materials | |
| Handrail specifications/materials | |
| Handle mounting plate | |
| Partition quantity/specification/material | |
| Monitor stand specifications/materials | |
| Drawer specifications/materials | |
| Oxygen cylinder rack specifications/materials | |
| Specifications/materials of strap bracket | |
| Load-bearing | 15Kg |
| Maximum push speed | 2m/s |
| Maximum tilt angle | 15° |
| Optional | |
| Packing box specifications | 900*570*210mm Double layer Mecca 170g |
| net weight | 18.5kg |
| Gross Weight | 21kg |
| Robotic Arm Specifications | |
| Robotic Arm | Threaded Aluminum Robot Arm |
| model | SA-01 |
| Material Code | 2.01.02.0001 |
| color | Sandblasting oxidation bright white |
| Material | 6063 Aluminum |
| Arm load | 5Kg |
| angle | 0°-210° |
| length | 1450mm |
| diameter | φ14 |
| Thread specification | M14*1.5 |
| Coil size/material | φ10*145mm chrome-plated Q235 steel |
| Coil load bearing | 0.75Kg |
| Hook Material | nylon |
| Installation | Thread |
| Number of joints | 3 sections |
| Joint structure | Zinc alloy joints |
| weight | 1.15Kg |
| Packing size | 530*95*80mm |
| Gross Weight | 1.33Kg |
1. The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.
2. Standard trolleys are in stock, and the minimum order is one piece.
3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.
