Medical trolley - multifunction trolley

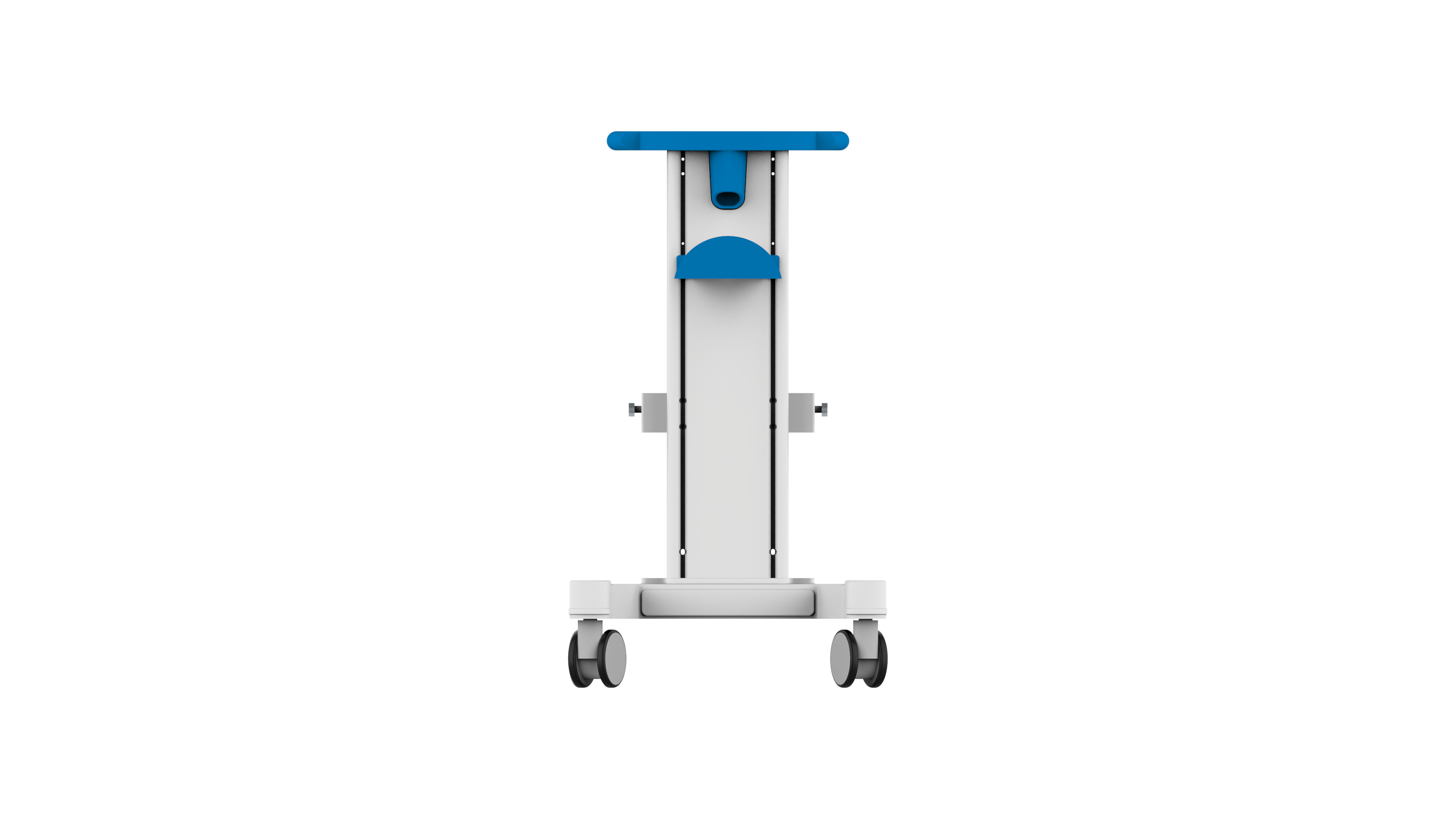

E-05 MEDICAL TROLLEY
Medical trolley – multifunction trolley
1. The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.
2. Standard trolleys are in stock, and the minimum order is one piece.
3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.
| Trolley | Type I Trolley |
| model | E05 |
| Material Code | 1.01.01.0039 |
| color | White sand grain + blue wrinkle |
| Trolley specifications/materials | 622*548*987mm White sand pattern Q235 steel + 6063 aluminum |
| Base specifications/materials | 622*548*70mm White sand pattern Q235 steel |
| Column specifications/materials | 210*55*735mm White sand grain 6063 aluminum |
| Specifications/materials of intermediate mounting plate | 300*200*55mm White sand texture ABS plastic |
| Installation platform specifications/materials | 352*295*133mm Blue wrinkled 6063 aluminum |
| Cable hanger specifications/materials | 186*55*75mm Blue wrinkled Q235 steel |
| Caster Specifications/Material | 4-inch casters (4 brakes） 100*130mm PA6 nylon+TPE white/gray |
| Load-bearing | 50Kg |
| Maximum push speed | 2m/s |
| Maximum tilt angle | 15° |
| Oxygen cylinder rack specifications/materials | |
| Specifications/materials of strap bracket | |
| Basket specifications/materials | |
| Humidifier pendant specifications/materials | |
| Humidifier mounting plate specifications/materials | |
| Handle specifications/materials | |
| Handrail specifications/materials | |
| Partition quantity/specification/material | |
| Monitor stand specifications/materials | |
| Drawer specifications/materials | |
| Optional | |
| Packing box specifications | 900*570*210mm Double layer Mecca 170g |
| net weight | 28kg |
| Gross Weight | 30kg |
1. The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.
2. Standard trolleys are in stock, and the minimum order is one piece.
3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.
