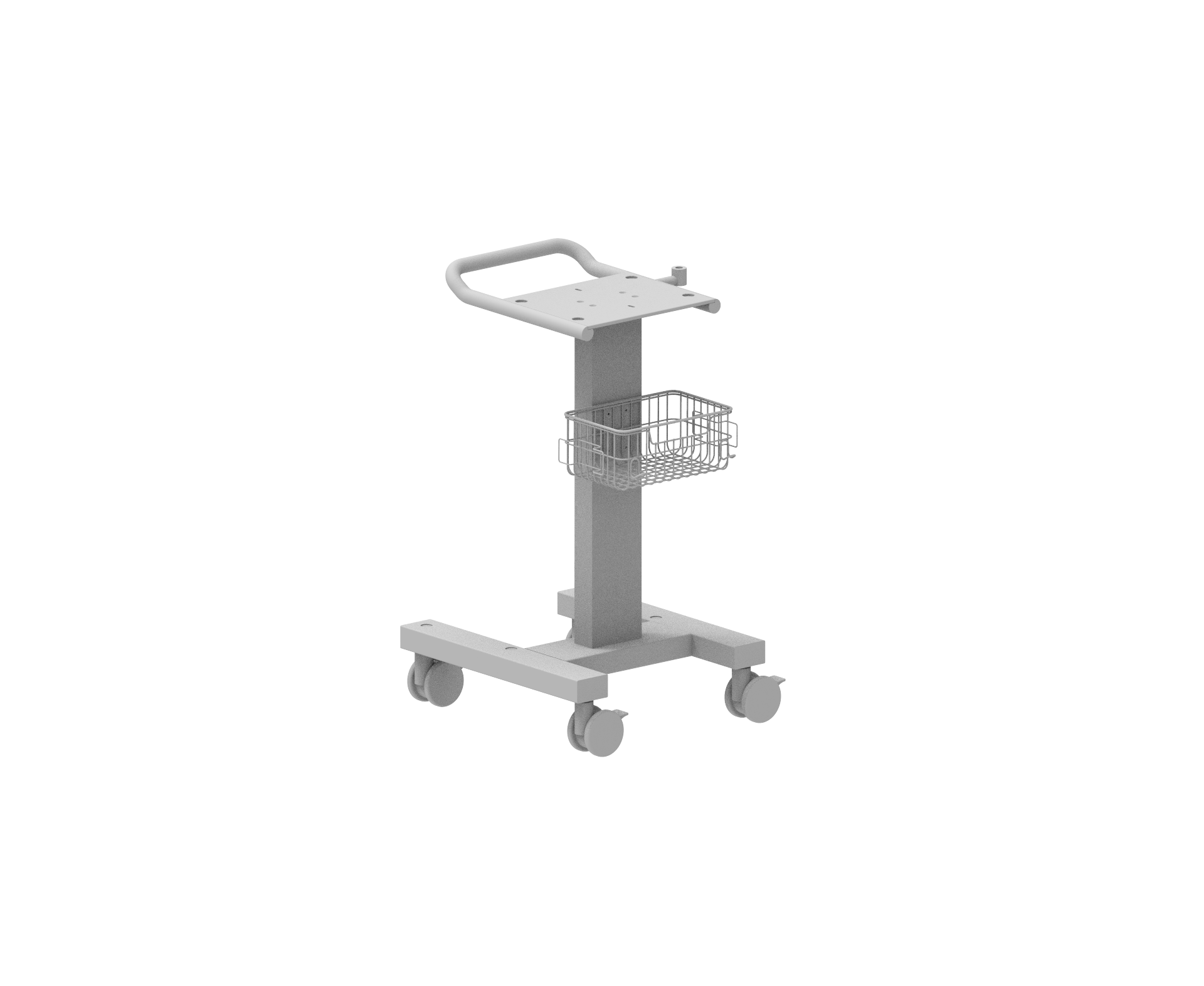

3E TROLLEY - BASIC STYLE - E01
E01 – 3E TROLLEY – BASIC STYLE
3E TROLLEY – BASIC STYLE – E01
1. The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.
2. Standard trolleys are in stock, and the minimum order is one piece.
3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.
| Trolley | Easy 3E Trolley |
| model | E01 |
| Material Code | 1.01.01.0035 |
| color | White sand grain + blue wrinkle |
| Trolley specifications/materials | 580*510*920mm White sand grain + blue wrinkle Q235 steel + 6063 aluminum |
| Base specifications/materials | 580*510*50mm White sand pattern Q235 steel |
| Column specifications/materials | 135*60*730mm White sand pattern Q235 steel |
| Installation platform specifications/materials | 487*378*73mm Blue wrinkled Q235 steel |
| Basket specifications/materials | 330*210*135mm White sand pattern Q235 steel |
| Humidifier pendant specifications/materials | 55*40*16mm sandblasted oxidized bright white 6063 aluminum |
| Humidifier mounting plate specifications/materials | 68*55*4mm White sand pattern Q235 steel |
| Caster Specifications/Material | 4-inch casters (4 brakes） 100*130mm PA6 nylon+TPE white/gray |
| Load-bearing | 50Kg |
| Maximum push speed | 2m/s |
| Maximum tilt angle | 15° |
| Oxygen cylinder rack specifications/materials | |
| Specifications/materials of strap bracket | |
| Handle specifications/materials | |
| Handrail specifications/materials | |
| Cable hanger specifications/materials | |
| Partition quantity/specification/material | |
| Monitor stand specifications/materials | |
| Drawer specifications/materials | |
| Optional | |
| Packing box specifications | 900*570*210mm Double layer Mecca 170g |
| net weight | 22.2Kg |
| Gross Weight | 24.8Kg |
1. The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.
2. Standard trolleys are in stock, and the minimum order is one piece.
3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.
