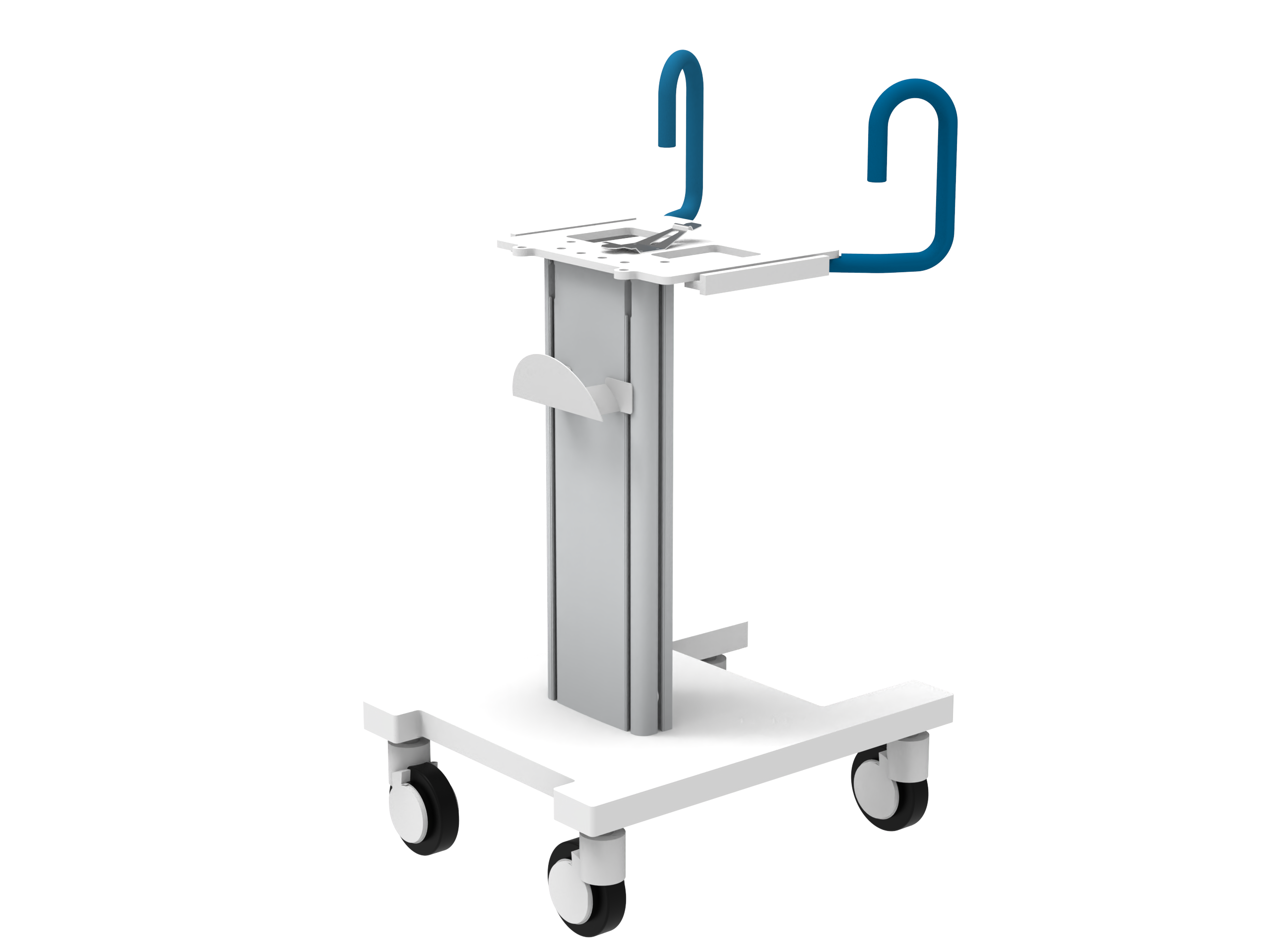

S type handle medical trolley - E04
E04 – MEDICAL TROLLEY S TYPE HANDLE TROLLEY
S type handle medical trolley – E04
1. The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.
2. Standard trolleys are in stock, and the minimum order is one piece.
3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.
| Trolley | Medical Trolley S Type Trolley |
| model | E04 |
| Material Code | 1.01.01.0038 |
| color | White sand grain + blue wrinkle |
| Trolley specifications/materials | 640*500*830mm White sand grain + blue wrinkle Q235 steel + 6063 aluminum |
| Base specifications/materials | 640*500*37mm White sand pattern Q235 steel |
| Column specifications/materials | 210*55*615mm White sand grain 6063 aluminum |
| Installation platform specifications/materials | 350*300*10mm White sand grain 6063 aluminum |
| Robot arm fixing plate specifications/materials | 210*40*2mm sandblasted oxidized bright white 6063 aluminum |
| Host card holder specifications/materials | 156.5*60*21mm Natural color 304 stainless steel |
| Handle specifications/materials | φ25*222*297mm Blue wrinkled 6063 aluminum |
| Cable hanger specifications/materials | 186*55*75mm Blue wrinkled Q235 steel |
| Caster Specifications/Material | 4-inch casters (4 brakes） 100*130mm PA6 nylon+TPE white/gray |
| Load-bearing | 50Kg |
| Maximum push speed | 2m/s |
| Maximum tilt angle | 15° |
| Cable hanger mounting plate specifications/materials | |
| Humidifier pendant specifications/materials | |
| Humidifier mounting plate specifications/materials | |
| Basket specifications/materials | |
| Oxygen cylinder rack specifications/materials | |
| Specifications/materials of strap bracket | |
| Handrail specifications/materials | |
| Partition quantity/specification/material | |
| Monitor stand specifications/materials | |
| Drawer specifications/materials | |
| Optional | |
| Packing box specifications | 900*570*210mm Double layer Mecca 170g |
| net weight | 22.5kg |
| Gross Weight | 25kg |
1. The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.
2. Standard trolleys are in stock, and the minimum order is one piece.
3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.
