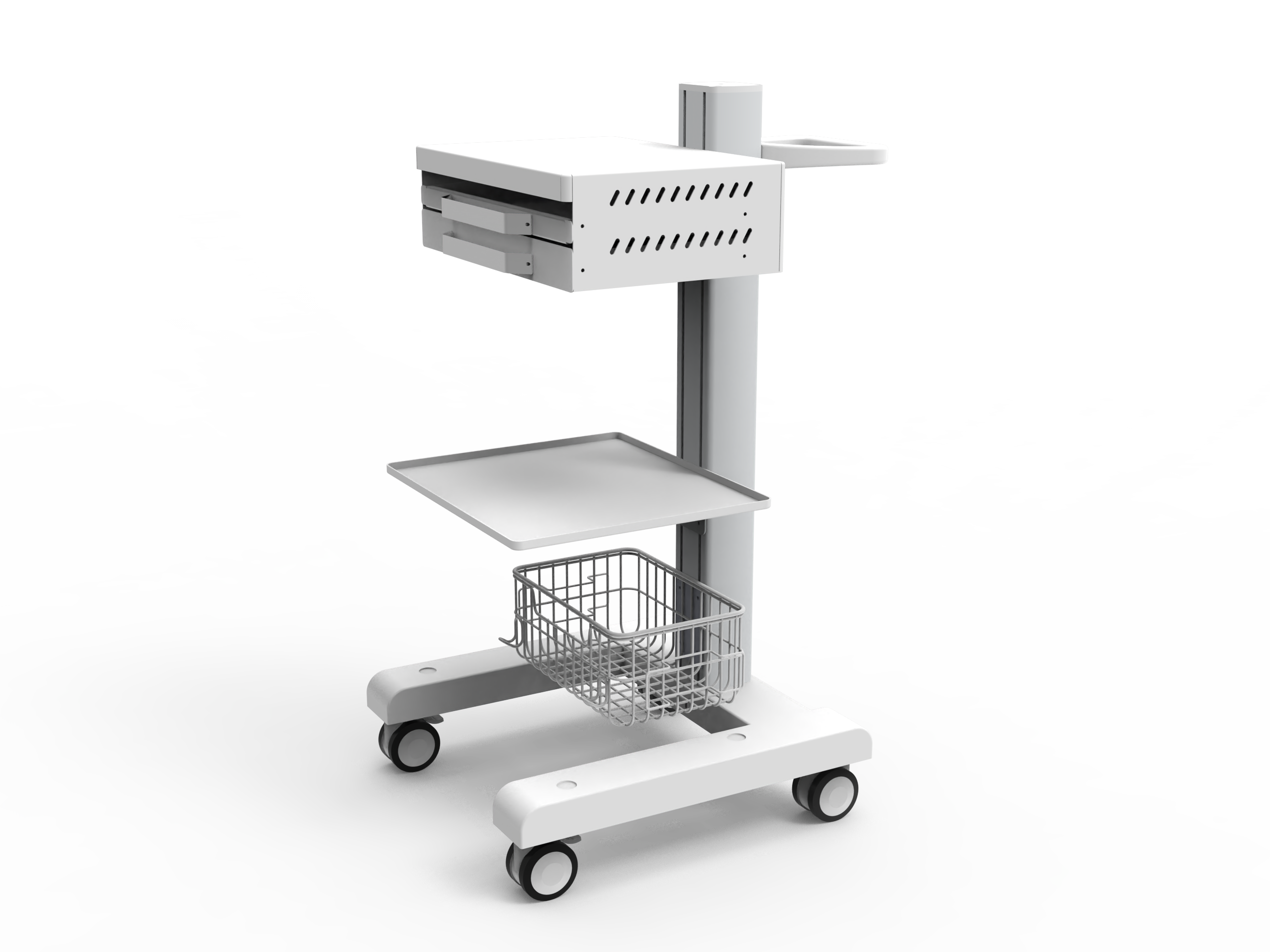

Multi-function Medical Cart - E08
E08 – Multi-function Medical Cart
Multi-function Medical Cart – E08
1. The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.
2. Standard trolleys are in stock, and the minimum order is one piece.
3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.
| Trolley | Multi-function Medical Cart |
| model | E08 |
| Material Code | 1.01.01.0085 |
| color | White sand texture |
| Trolley specifications/materials | 550*520*960mm White sand grain 6063 aluminum + Q235 steel |
| Base specifications/materials | 550*520*50mm White Sand Texture 6063 Aluminum |
| Column specifications/materials | 78*100*810mm blue and white sand grain 6063 aluminum |
| Installation platform specifications/materials | 250*210*5mm gray Q235 steel |
| Drawer specifications/materials | 430*290*131.5mm White sand pattern Q235 steel |
| Handle specifications/materials | 210*170*25mm white ABS plastic |
| Shelf/Specifications/Material | 400*360*12mm White sand pattern Q235 steel |
| Basket specifications/materials | 330*210*135mm White sand pattern Q235 steel |
| Caster Specifications/Material | 3-inch caster (2 brakes, 2 universal) 50*90mm PA+PU white and black |
| Humidifier pendant specifications/materials | |
| Cable hanger specifications/materials | |
| Infusion stand hook specifications/materials | |
| Humidifier mounting plate specifications/materials | |
| Handrail specifications/materials | |
| Handle mounting plate | |
| Monitor stand specifications/materials | |
| Oxygen cylinder rack specifications/materials | |
| Specifications/materials of strap bracket | |
| Load-bearing | 15Kg |
| Maximum push speed | 2m/s |
| Maximum tilt angle | 15° |
| Optional | |
| Packing box specifications | 900*570*210mm Double layer Mecca 170g |
| net weight | 21.5kg |
| Gross Weight | 24kg |
1. The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.
2. Standard trolleys are in stock, and the minimum order is one piece.
3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.
