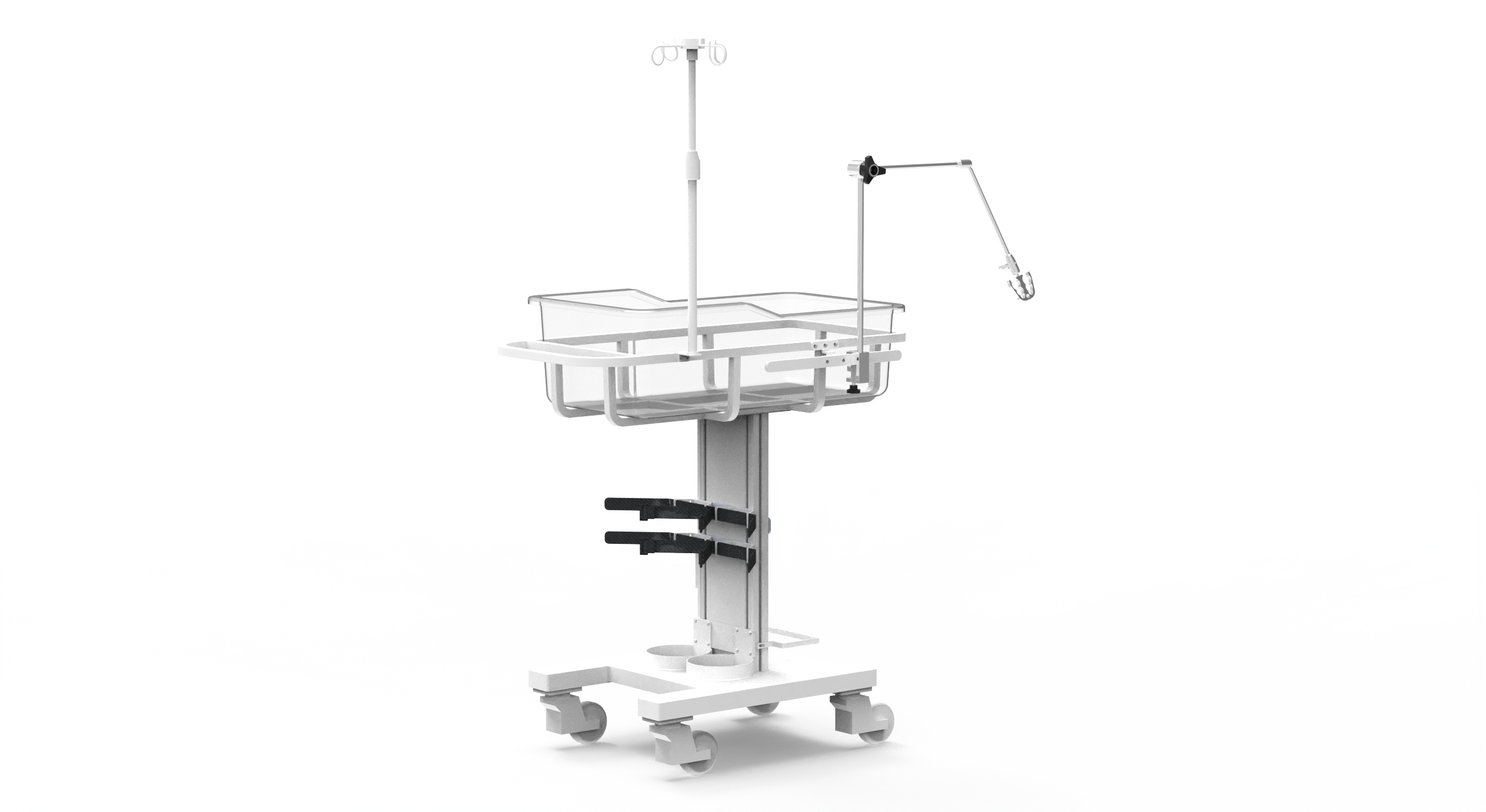

INFANT TRANSFER AND MEDICAL CARE CART - F03
F03-INFANT TRANSFER AND MEDICAL CARE CART
INFANT TRANSFER AND MEDICAL CARE CART – F03
1. The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.
2. Standard trolleys are in stock, and the minimum order is one piece.
3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.
| Trolley | Baby transport trolley |
| model | F03 |
| Material Code | 1.01.01.0043 |
| color | White sand texture |
| Trolley specifications/materials | 600*550*1070mm 6063 aluminum +Q235 steel + ABS plastic |
| Base specifications/materials | 640*500*37mm White sand pattern Q235 steel |
| Column specifications/materials | 210*55*735mm White sand grain 6063 aluminum |
| Transfer basin bracket specifications/materials | 920*440*170mm White sand pattern Q235 steel |
| Transfer basin specifications/materials | 800*450*220mm transparent ABS plastic |
| Oxygen cylinder rack specifications/materials | 150*99*3mm White sand pattern Q235 steel |
| Specifications/materials of strap bracket | 120*40*2.5mm White sand pattern Q235 steel |
| Humidifier pendant specifications/materials | 55*40*16mm sandblasted oxidized bright white 6063 aluminum |
| Handle specifications/materials | φ22*450*160mm Red Q235+Silicone |
| Handle mounting plate specifications/materials | 130*100*8mm White sand pattern Q235 steel |
| Caster Specifications/Material | 4-inch casters (4 brakes） 100*130mm PA6 nylon+TPE white/gray |
| Load-bearing | 30Kg |
| Maximum push speed | 2m/s |
| Maximum tilt angle | 15° |
| U-shaped bracket specifications/Material | |
| Partition quantity/specification/material | |
| Humidifier mounting plate specifications/materials | |
| Installation platform specifications/materials | |
| Monitor stand specifications/materials | |
| Drawer specifications/materials | |
| Oxygen cylinder rack specifications/materials | |
| Specifications/materials of strap bracket | |
| Handrail specifications/materials | |
| Cable hanger specifications/materials | |
| Basket specifications/materials | |
| Optional | |
| Packing box specifications | 805*635*300mm Double layer Mecca 170g |
| Robotic Arm | 28kg |
| Gross Weight | 30.6kg |
1. The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.
2. Standard trolleys are in stock, and the minimum order is one piece.
3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.
