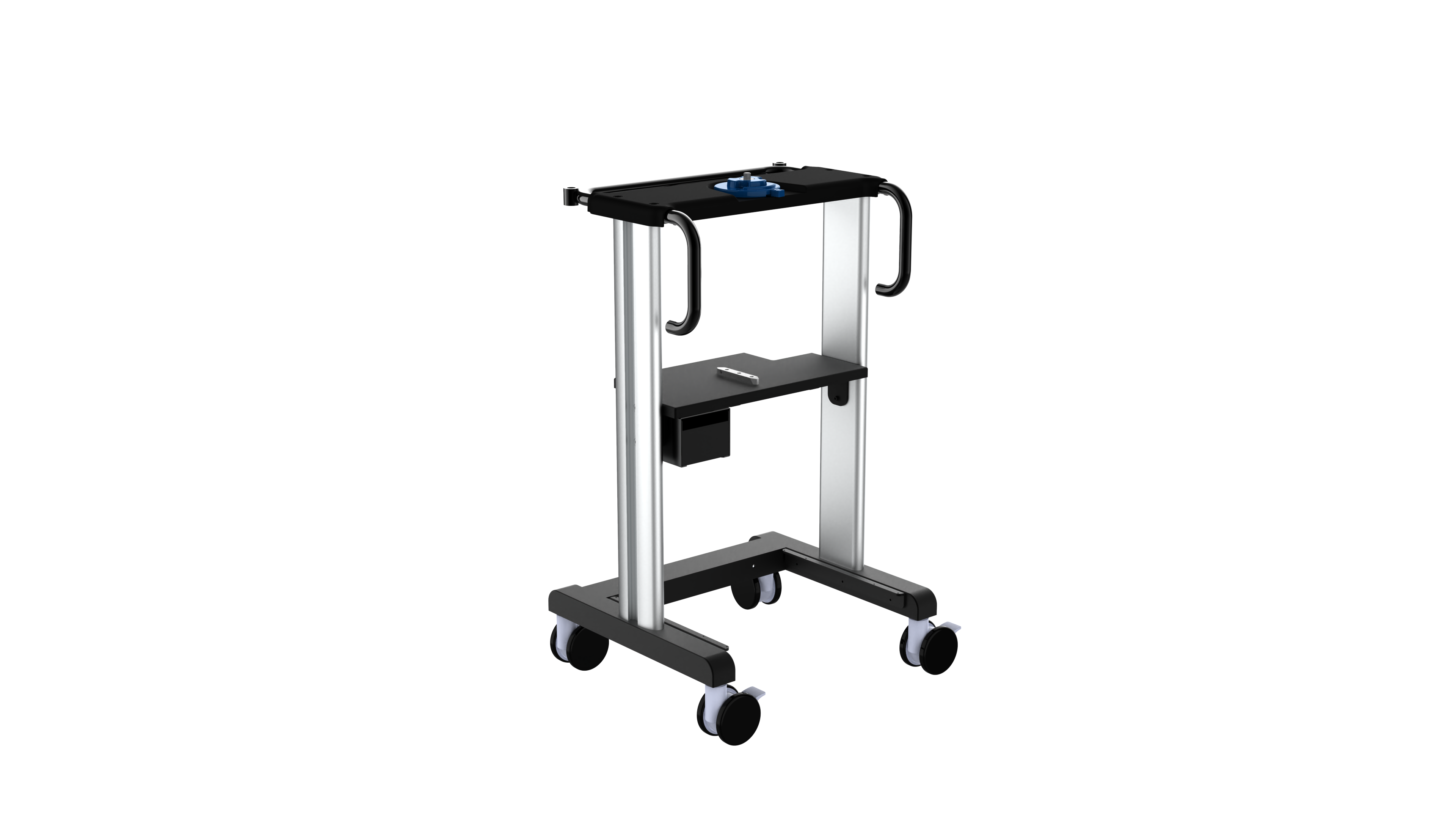

Ventilator and Operation Cart with Aluminum Alloy material - H01
H01-Ventilator and Operation Cart
Ventilator and Operation Cart with Aluminum Alloy material – H01
1. The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.
2. Standard trolleys are in stock, and the minimum order is one piece.
3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.
| Trolley | Ventilator, Operation Cart |
| model | H01 |
| Material Code | 1.01.01.0046 |
| color | Gray sand texture |
| Trolley specifications/materials | 581*520*985mm Grey sand pattern 6063 aluminum + Q235 steel |
| Base specifications/materials | 581*520*50mm Grey sand pattern Q235 steel |
| Column specifications/materials | 775*122*35.5mm sandblasted oxidized bright white 6063 aluminum |
| Installation platform specifications/materials | 563*225*35mm Gray ABS Gray |
| Middle table specifications/materials | 490*257*95mm Grey Sand Pattern Q235 Steel |
| Handle specifications/materials | φ25*523*132mm Grey sand pattern Q235 steel |
| Humidifier pendant specifications/materials | 55*40*16mm sandblasted oxidized bright white 6063 aluminum |
| Humidifier mounting plate specifications/materials | 210*85.5*4mm White sand pattern Q235 steel |
| Drawer specifications/materials | 168*114*89mm Grey sand pattern Q235 steel |
| GUI Mount | φ120*25mm White ABS plastic |
| Caster Specifications/Material | 4-inch casters (4 brakes） 100*130mm PA6 nylon+TPE white/gray |
| Load-bearing | 50Kg |
| Maximum push speed | 2m/s |
| Maximum tilt angle | 15° |
| Basket specifications/materials | |
| Oxygen cylinder rack specifications/materials | |
| Specifications/materials of strap bracket | |
| Handrail specifications/materials | |
| Cable hanger specifications/materials | |
| Partition quantity/specification/material | |
| Monitor stand specifications/materials | |
| Optional | |
| Packing box specifications | 805*635*300mm Double layer Mecca 170g |
| net weight | 28kg |
| Gross Weight | 30kg |
1. The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.
2. Standard trolleys are in stock, and the minimum order is one piece.
3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.
