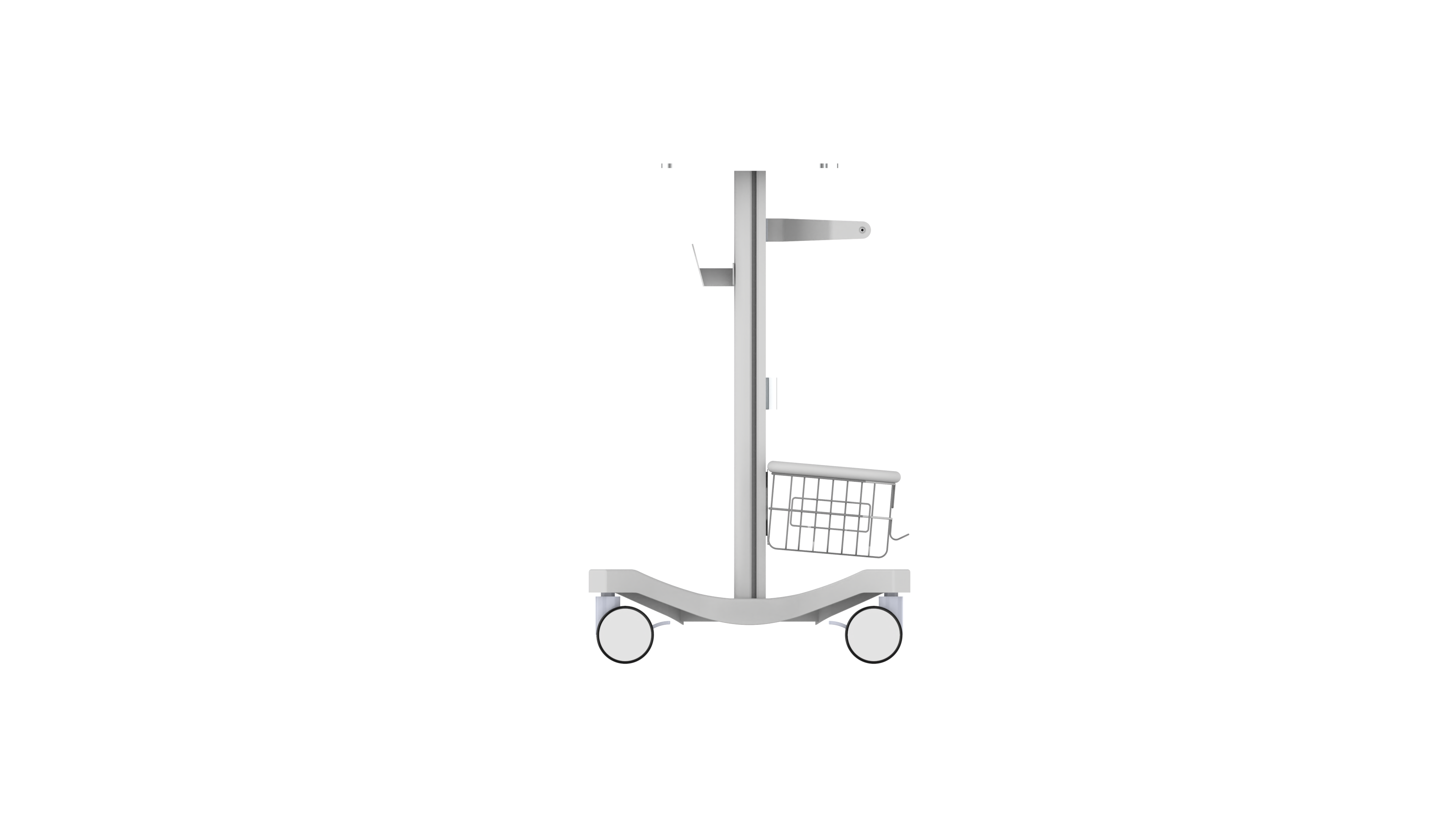

Ventilator, monitor Cart - E360 Cart - K01
K01 – Ventilator, monitor Cart – E360 Cart
Ventilator, monitor Cart – E360 Cart – K01
1. The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.
2. Standard trolleys are in stock, and the minimum order is one piece.
3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.
| Trolley | Ventilator, monitor Cart – E360 Cart |
| model | K01 |
| Material Code | 1.01.01.0050 |
| color | White sand texture |
| Trolley specifications/materials | 640*500*830mm White sand pattern Q235 steel + 6063 aluminum |
| Base specifications/materials | 640*500*37mm White sand pattern Q235 steel |
| Column specifications/materials | 210*55*615mm White sand grain 6063 aluminum |
| Installation platform specifications/materials | 307*300*8mm oxidized natural 6061 aluminum |
| Cable hanger specifications/materials | 186*55*75mm White sand pattern Q235 steel |
| Handle specifications/materials | 240*18*6mm Natural color 6063 aluminum |
| Humidifier pendant specifications/materials | 55*40*16mm sandblasted oxidized bright white 6063 aluminum |
| Basket specifications/materials | 330*210*135mm White sand pattern Q235 steel |
| Caster Specifications/Material | 4-inch casters (4 brakes） 100*130mm PA6 nylon+TPE white/grey |
| Infusion stand hook specifications/materials | |
| Humidifier mounting plate specifications/materials | |
| Handrail specifications/materials | |
| Handle mounting plate | |
| Partition quantity/specification/material | |
| Monitor stand specifications/materials | |
| Drawer specifications/materials | |
| Oxygen cylinder rack specifications/materials | |
| Specifications/materials of strap bracket | |
| Load-bearing | 15Kg |
| Maximum push speed | 2m/s |
| Maximum tilt angle | 15° |
| Optional | |
| Packing box specifications | 900*570*210mm Double layer Mecca 170g |
| net weight | 24kg |
| Gross Weight | 26.6kg |
1. The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.
2. Standard trolleys are in stock, and the minimum order is one piece.
3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.
