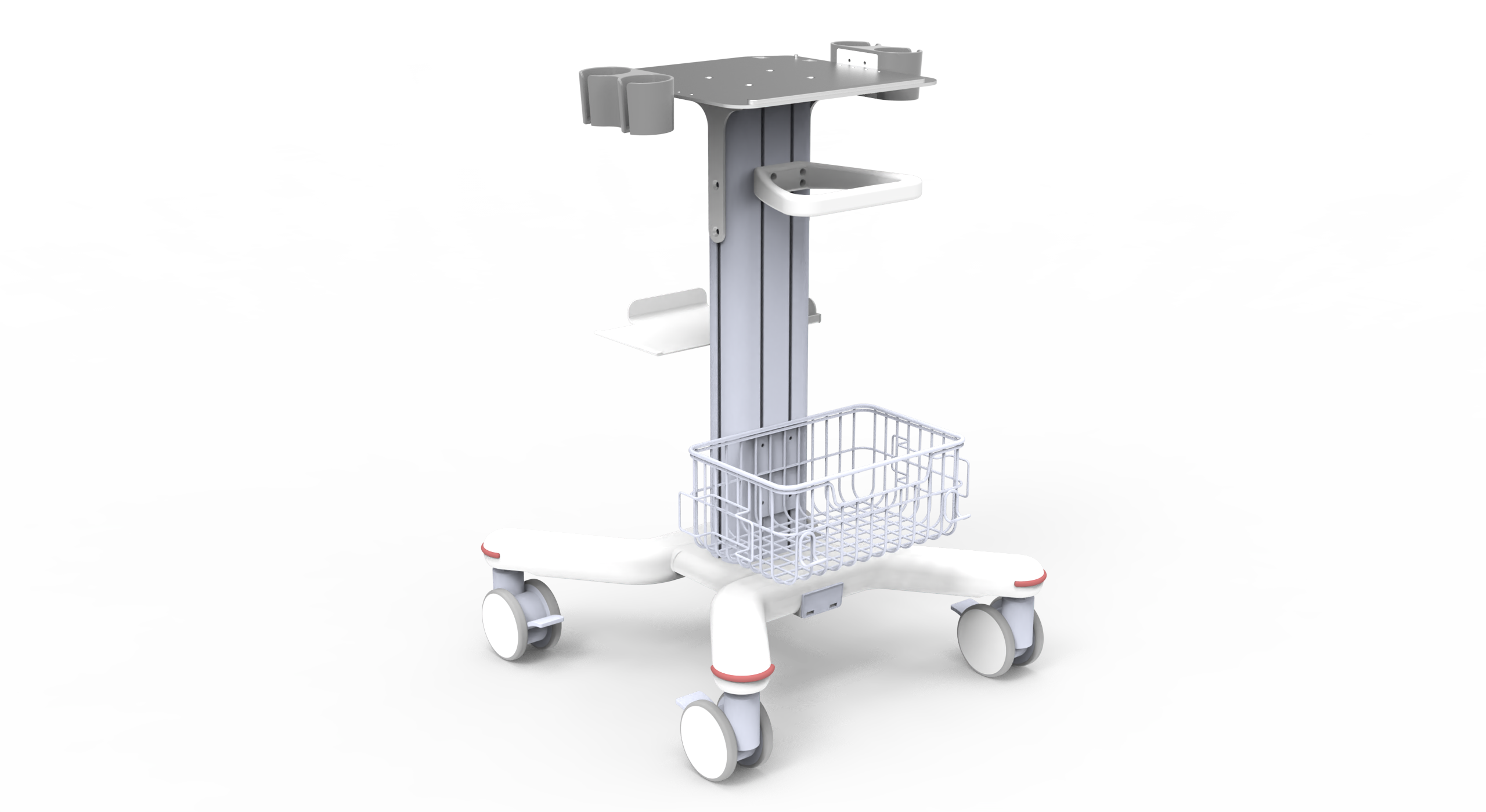

Ventilator, Monitor Trolley Cart - SLE5000 ventilator Cart - K02
K02 – VENTILATOR, MONITOR TROLLEY CART – SLE5000 VENTILATOR CART
Ventilator, Monitor Trolley Cart – SLE5000 ventilator Cart – K02
1. The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.
2. Standard trolleys are in stock, and the minimum order is one piece.
3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.
| Trolley | SLE5000 Cart |
| model | K02 |
| Material Code | 1.01.01.0052 |
| color | White sand grain + grayish white+Red |
| Trolley specifications/materials | 600*550*910mm Q235 steel + ABS plastic + 6063 aluminum |
| Base specifications/materials | 600*550*165mm Q235 steel+ABS plastic+silicone |
| Column specifications/materials | 70*135*725mm White sand grain 6063 aluminum |
| Installation platform specifications/materials | 350*280*35mm White sand pattern Q235 steel |
| Basket specifications/materials | 330*210*135mm White sand pattern Q235 steel |
| Humidifier pendant specifications/materials | 70*55*15mm White ABS |
| Handle specifications/materials | φ22*450*160mm Red Q235+Silicone |
| Handle mounting plate specifications/materials | 130*100*8mm White sand pattern Q235 steel |
| Bar specifications/materials | 300*25*10mm oxidized bright white 6061 aluminum |
| Caster Specifications/Material | 4-inch casters (4 brakes） 100*130mm PA6 nylon+TPE white/gray |
| Load-bearing | 50Kg |
| Maximum push speed | 2m/s |
| Maximum tilt angle | 15° |
| Humidifier mounting plate specifications/materials | |
| Oxygen cylinder rack specifications/materials | |
| Specifications/materials of strap bracket | |
| Handrail specifications/materials | |
| Cable hanger specifications/materials | |
| Partition quantity/specification/material | |
| Monitor stand specifications/materials | |
| Drawer specifications/materials | |
| Optional | |
| Packing box specifications | 805*635*300mm Double layer Mecca 170g |
| net weight | 17.4kg |
| Gross Weight | 20kg |
1. The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.
2. Standard trolleys are in stock, and the minimum order is one piece.
3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.
