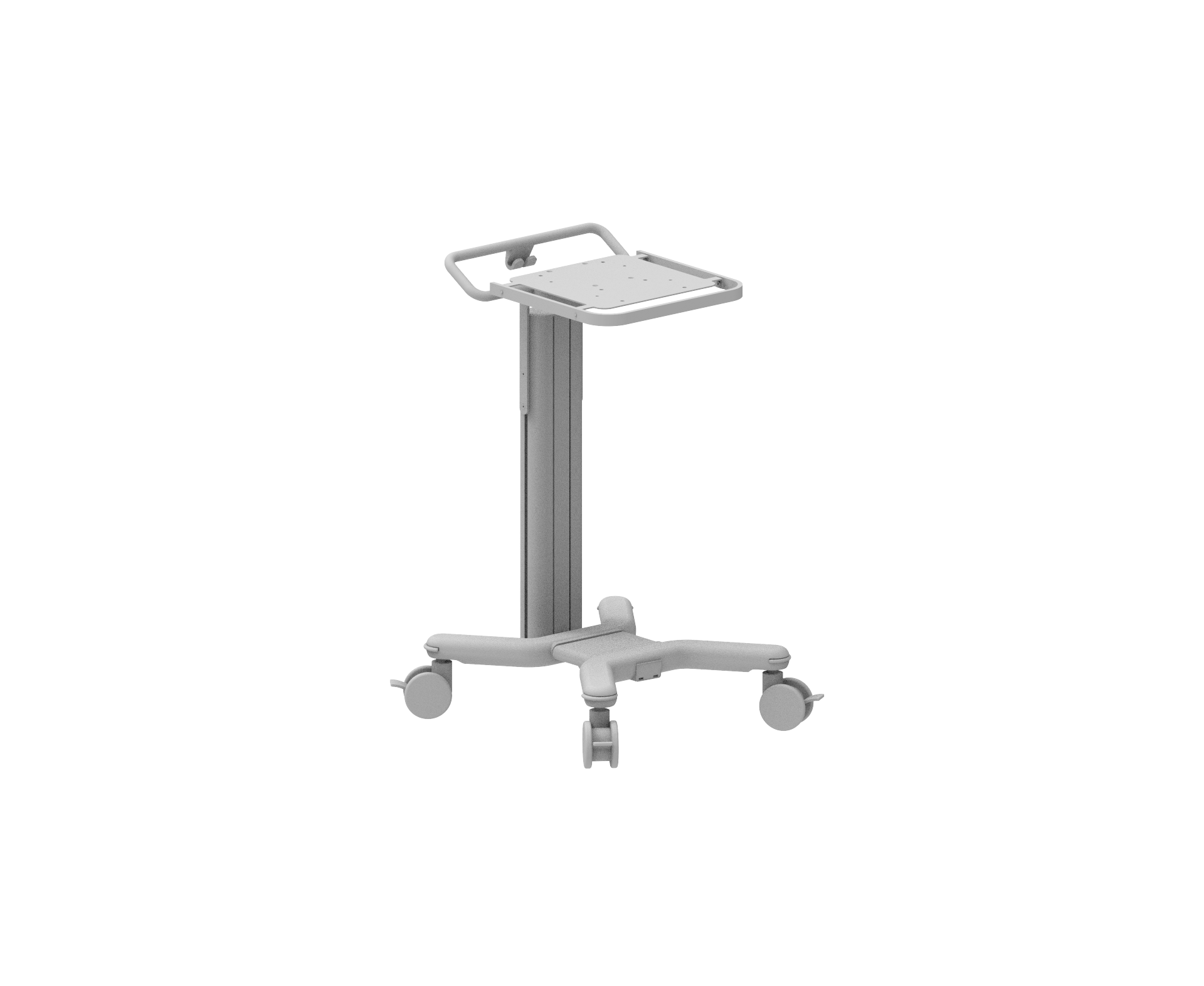

MONITOR TROLLEY CART - K04
K04 – MONITOR TROLLEY CART
MONITOR TROLLEY CART – K04
1. The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.
2. Standard trolleys are in stock, and the minimum order is one piece.
3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.
| Trolley | Monitor trolley |
| model | K04 |
| Material Code | 1.01.01.0053 |
| color | Silver gray + gray + red |
| Trolley specifications/materials | 600*550*850mm 6063 aluminum +Q235 steel + ABS plastic |
| Base specifications/materials | 600*550*165mm Q235 steel+ABS plastic+silicone |
| Column specifications/materials | 70*135*725mm Silver Grey 6063 Aluminum |
| Installation platform specifications/materials | 320*320*3mm Black Q235 steel |
| U-shaped bracket specifications/Material | 370*430*25mm sandblasted oxidized bright white 6061 aluminum |
| Humidifier pendant specifications/materials | 55*40*16mm sandblasted oxidized bright white 6063 aluminum |
| Humidifier mounting plate specifications/materials | 228*52*3mm sandblasted oxidized bright white 6061 aluminum |
| Handle specifications/materials | φ22*450*160mm Red Q235+Silicone |
| Handle mounting plate specifications/materials | 130*100*8mm White sand pattern Q235 steel |
| Caster Specifications/Material | 4-inch casters (4 brakes） 100*130mm PA6 nylon+TPE white/gray |
| Load-bearing | 30Kg |
| Maximum push speed | 2m/s |
| Maximum tilt angle | 15° |
| Partition quantity/specification/material | |
| Monitor stand specifications/materials | |
| Drawer specifications/materials | |
| Oxygen cylinder rack specifications/materials | |
| Specifications/materials of strap bracket | |
| Handrail specifications/materials | |
| Cable hanger specifications/materials | |
| Basket specifications/materials | |
| Optional | |
| Packing box specifications | 805*635*300mm Double layer Mecca 170g |
| net weight | 20kg |
| Gross Weight | 22.3kg |
1. The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.
2. Standard trolleys are in stock, and the minimum order is one piece.
3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.
