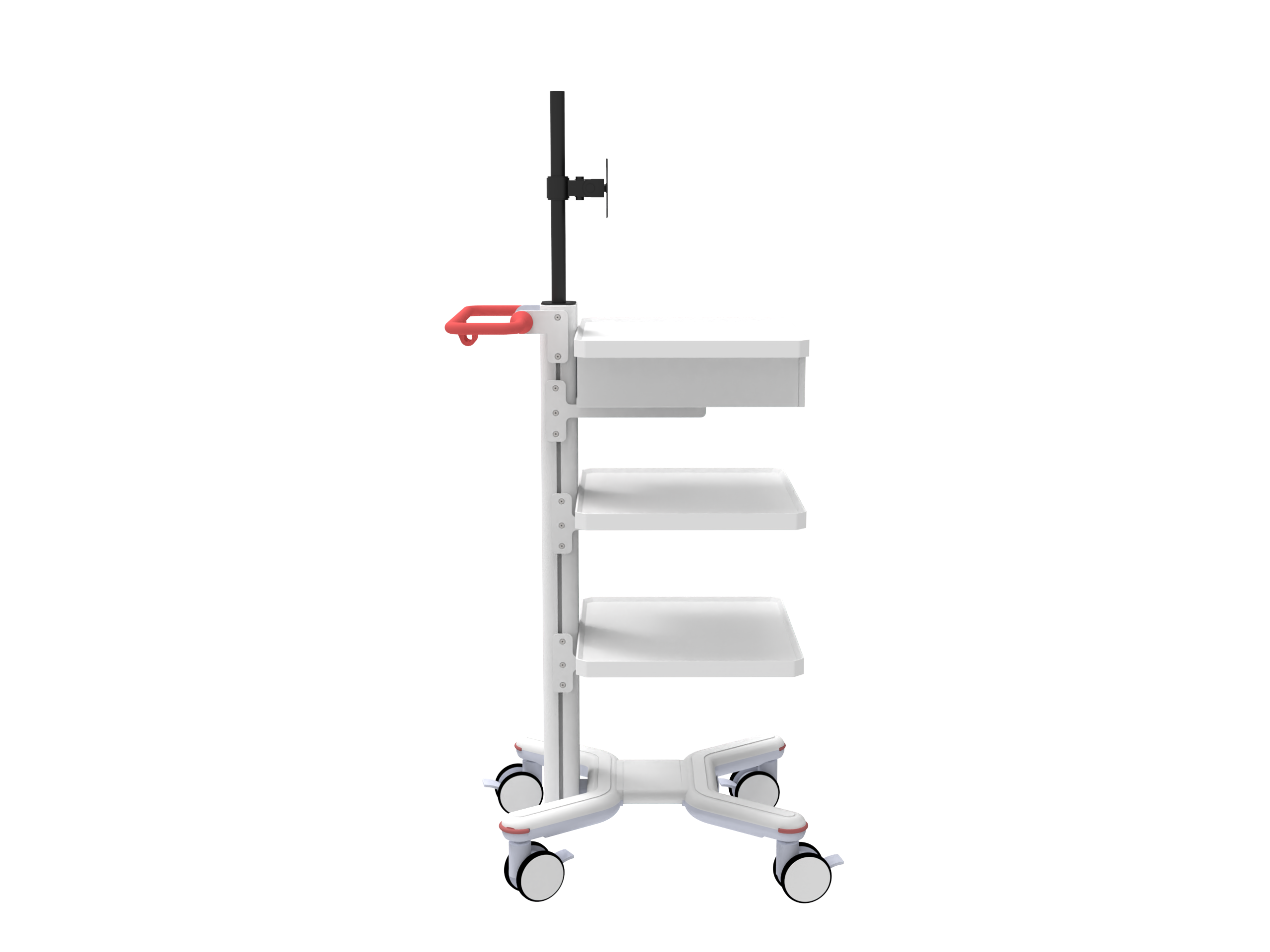

Multi-layer trolley K05
K05-MULTI-LAYER MEDICAL CART
Multi-layer trolley K05
1. The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.
2. Standard trolleys are in stock, and the minimum order is one piece.
3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.
| Trolley | Multi-layerTrolley |
| model | K05 |
| Material Code | 1.01.01.0054 |
| color | White sand grain + grayish white+Red |
| Trolley specifications/materials | 600*550*1140mm Q235 steel + ABS plastic |
| Base specifications/materials | 600*550*165mm Q235 steel+ABS plastic+silicone |
| Column specifications/materials | 70*135*1000mm White sand grain 6063 aluminum |
| Installation platform specifications/materials | 500*430*30mm Medical white PA6 nylon |
| Partition quantity/specification/material | 1 drawer + 2 shelves 500*430*30mm medical white PA6 nylon + Q235 steel white sand grain |
| Monitor stand specifications/materials | 405*35mm black Q235 steel |
| Drawer specifications/materials | 400*425*95mm White sand pattern Q235 steel |
| Handle specifications/materials | φ22*450*160mm Red Q235+Silicone |
| Handle mounting plate specifications/materials | 130*100*8mm White sand pattern Q235 steel |
| Caster Specifications/Material | 4-inch casters (4 brakes） 100*130mm PA6 nylon+TPE white/gray |
| Load-bearing | 100Kg |
| Maximum push speed | 2m/s |
| Maximum tilt angle | 15° |
| Oxygen cylinder rack specifications/materials | |
| Specifications/materials of strap bracket | |
| Humidifier pendant specifications/materials | |
| Humidifier mounting plate specifications/materials | |
| Handrail specifications/materials | |
| Cable hanger specifications/materials | |
| Basket specifications/materials | |
| Optional | |
| Packing box specifications | 1060*570*260mm Double layer Mecca 170g |
| net weight | 40kg |
| Gross Weight | 43kg |
1. The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.
2. Standard trolleys are in stock, and the minimum order is one piece.
3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.
