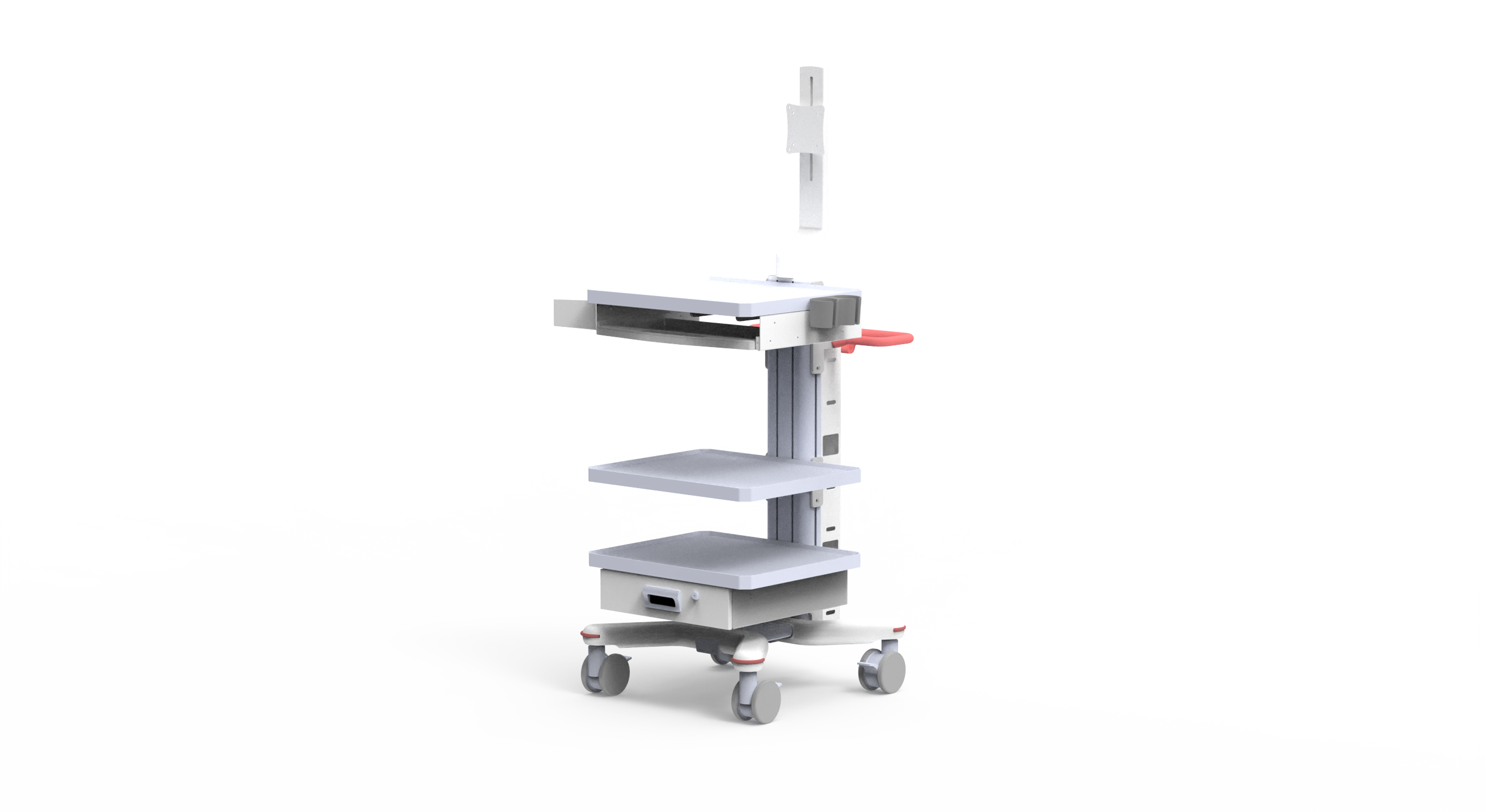

Medical Cart with multi-layer, drawer, keyboard plate and monitor mount - K08
K08 – MULTI-LAYER MONITOR MEDICAL CART WITH DRAWER AND KEYBOARD PLATE
Medical Cart with multi-layer, drawer, keyboard plate and monitor mount – K08
1. The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.
2. Standard trolleys are in stock, and the minimum order is one piece.
3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.
| Trolley | Multi-layer trolley (3 layers) |
| model | K08 |
| Material Code | 1.01.01.0065 |
| color | White sand grain + grayish white+Red |
| Trolley specifications/materials | 600*550*980mm Q235 steel + ABS plastic |
| Base specifications/materials | 600*550*165mm Q235 steel+ABS plastic+silicone |
| Column specifications/materials | 70*135*840mm White Sand Texture 6063 Aluminum |
| Installation platform specifications/materials | 500*430*30mm Medical white PA6 nylon |
| Partition quantity/specification/material | 1 drawer+1Layers of boards+1 layer keyboard 500*430*30mm Medical white PA6 nylon + Q235 steel white sand grain |
| Monitor stand specifications/materials | 17 inch white and black 6063 aluminum |
| Storage box specifications/materials | 360*140*70mm White sand pattern Q235 steel |
| Couplant Specifications/Material | 130*65*50mm Grey ABS plastic |
| Junction box specifications/materials | 780*100*77.4mm White sand grain Q235 steel |
| Drawer specifications/materials | 400*425*95mm White sand pattern Q235 steel |
| Handle specifications/materials | φ22*450*160mm Red Q235+Silicone |
| Handle mounting plate specifications/materials | 130*100*8mm White sand pattern Q235 steel |
| Caster Specifications/Material | 4-inch casters (4 brakes） 100*130mm PA6 nylon+TPE white/grey |
| Load-bearing | 100Kg |
| Maximum push speed | 2m/s |
| Maximum tilt angle | 15° |
| Oxygen cylinder rack specifications/materials | |
| Specifications/materials of strap bracket | |
| Humidifier pendant specifications/materials | |
| Humidifier mounting plate specifications/materials | |
| Handrail specifications/materials | |
| Cable hanger specifications/materials | |
| Basket specifications/materials | |
| Optional | |
| Packing box specifications | 670*620*970mm Double layer Mecca 170g |
| net weight | 49kg |
| Gross Weight | 57.6kg |
1. The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.
2. Standard trolleys are in stock, and the minimum order is one piece.
3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.
