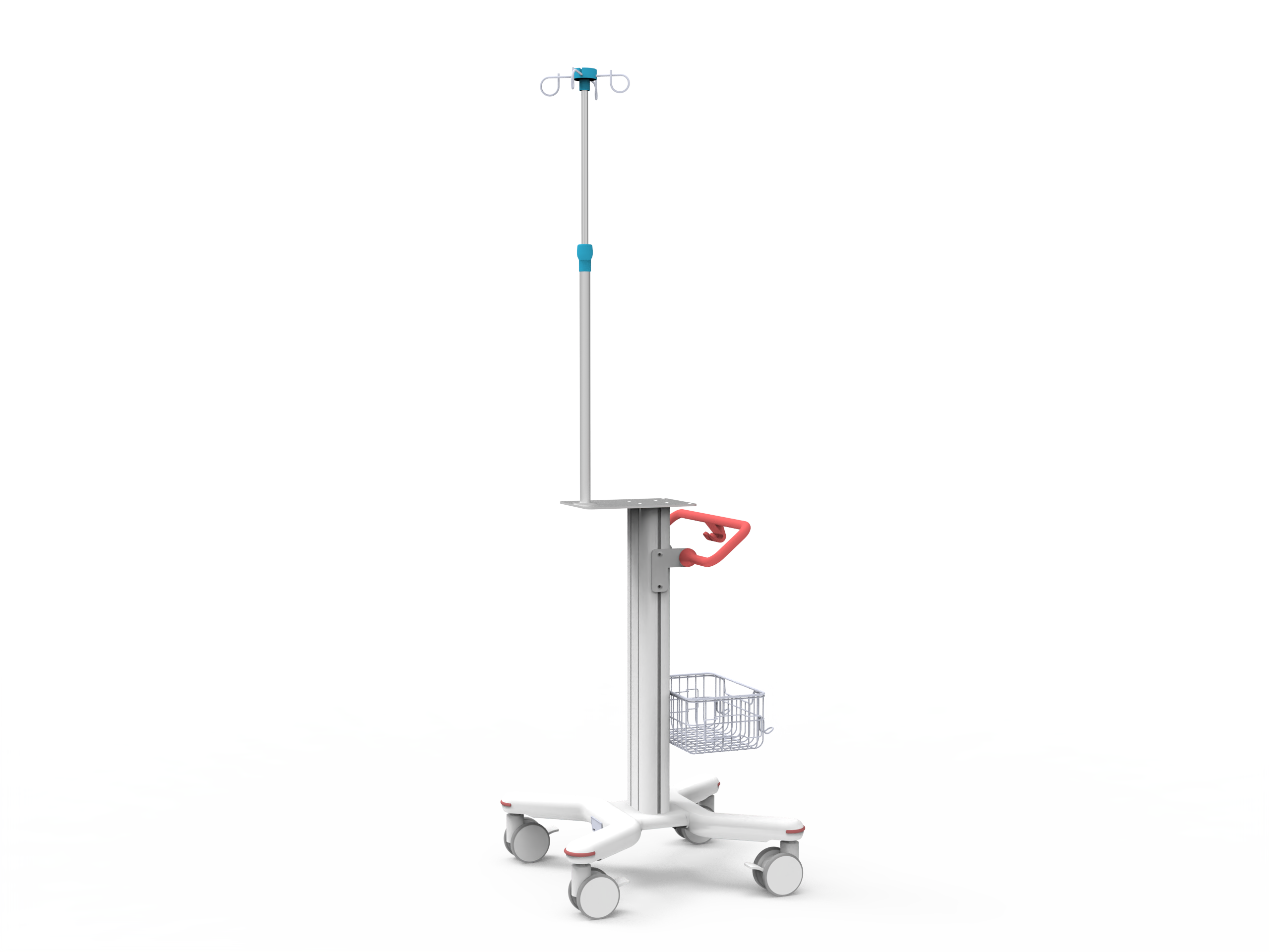

Infusion pump cart with basket - K10
K10 – INFUSION PUMP CART WITH BASKET
Infusion pump cart with basket – K10
1. The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.
2. Standard trolleys are in stock, and the minimum order is one piece.
3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.
| Trolley | Infusion Pump Cart |
| model | K10 |
| Material Code | 1.01.01.0068 |
| color | Silver gray + gray + red |
| Trolley specifications/materials | 600*550*850mm 6063 aluminum + Q235 steel + ABS plastic |
| Base specifications/materials | 600*550*165mm Q235 steel+ABS plastic+silicone |
| Column specifications/materials | 70*135*850mm Silver gray 6063 aluminum |
| Handle specifications/materials | φ22*450*160mm Red Q235+Silicone |
| Installation platform specifications/materials | 275*200*5mm white sand pattern Q235 steel |
| Infusion pump bracket specifications/materials | φ25*700mm Natural color 304 stainless steel |
| Handle mounting plate specifications/materials | 130*100*8mm White sand pattern Q235 steel |
| Caster Specifications/Material | 4-inch casters (4 brakes） 100*130mm PA6 nylon+TPE white/gray |
| Load-bearing | 30Kg |
| Maximum push speed | 2m/s |
| Maximum tilt angle | 15° |
| Humidifier pendant specifications/materials | |
| Humidifier mounting plate specifications/materials | |
| U-shaped bracket specifications/Material | |
| Partition quantity/specification/material | |
| Monitor stand specifications/materials | |
| Drawer specifications/materials | |
| Oxygen cylinder rack specifications/materials | |
| Specifications/materials of strap bracket | |
| Handrail specifications/materials | |
| Cable hanger specifications/materials | |
| Basket specifications/materials | |
| Optional | |
| Packing box specifications | 805*635*300mm Double layer Mecca 170g |
| net weight | 20kg |
| Gross Weight | 22.3kg |
1. The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.
2. Standard trolleys are in stock, and the minimum order is one piece.
3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.
