3 Layers, monitor mount cart medical cart with drawer

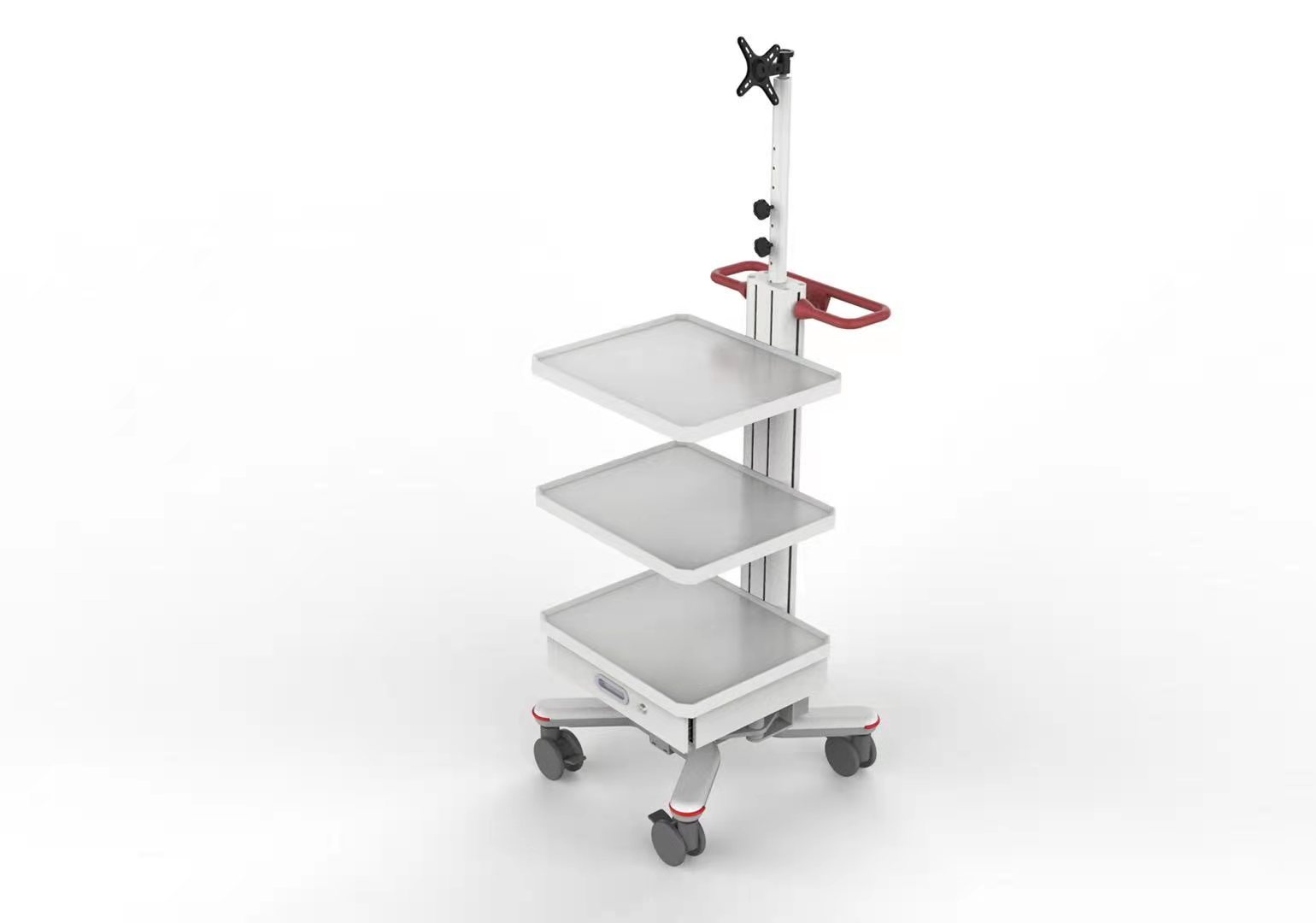

K12 – THREE LAYERS MONITOR MOUNT MEDICAL CART
3 Layers, monitor mount cart medical cart with drawer – K12
1. The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.
2. Standard trolleys are in stock, and the minimum order is one piece.
3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.
| Trolley | Omron Trolley |
| model | K12 |
| Material Code | 1.01.01.0062 |
| color | White sand grain + grayish white+Red |
| Trolley specifications/materials | 600*550*980mm Q235 steel + ABS plastic |
| Base specifications/materials | 600*550*165mm Q235 steel+ABS plastic+silicone |
| Column specifications/materials | 70*135*850mm White Sand Texture 6063 Aluminum |
| Installation platform specifications/materials | 500*430*30mm Medical white PA6 nylon |
| Partition quantity/specification/material | 1 drawer+1Layers of boards+1 layer keyboard 500*430*30mm Medical white PA6 nylon + Q235 steel white sand grain |
| Monitor stand specifications/materials | 17 inch white and black 6063 aluminum |
| Drawer specifications/materials | 400*425*95mm White sand pattern Q235 steel |
| Handle specifications/materials | φ22*450*160mm Red Q235+Silicone |
| Handle mounting plate specifications/materials | 130*100*8mm White sand pattern Q235 steel |
| Caster Specifications/Material | 4-inch casters (4 brakes） 100*130mm PA6 nylon+TPE white/gray |
| Load-bearing | 100Kg |
| Maximum push speed | 2m/s |
| Maximum tilt angle | 15° |
| Oxygen cylinder rack specifications/materials | |
| Specifications/materials of strap bracket | |
| Humidifier pendant specifications/materials | |
| Humidifier mounting plate specifications/materials | |
| Handrail specifications/materials | |
| Cable hanger specifications/materials | |
| Basket specifications/materials | |
| Optional | |
| Packing box specifications | 670*620*970mm Double layer Mecca 170g |
| net weight | 49kg |
| Gross Weight | 57.6kg |
1. The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.
2. Standard trolleys are in stock, and the minimum order is one piece.
3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.
