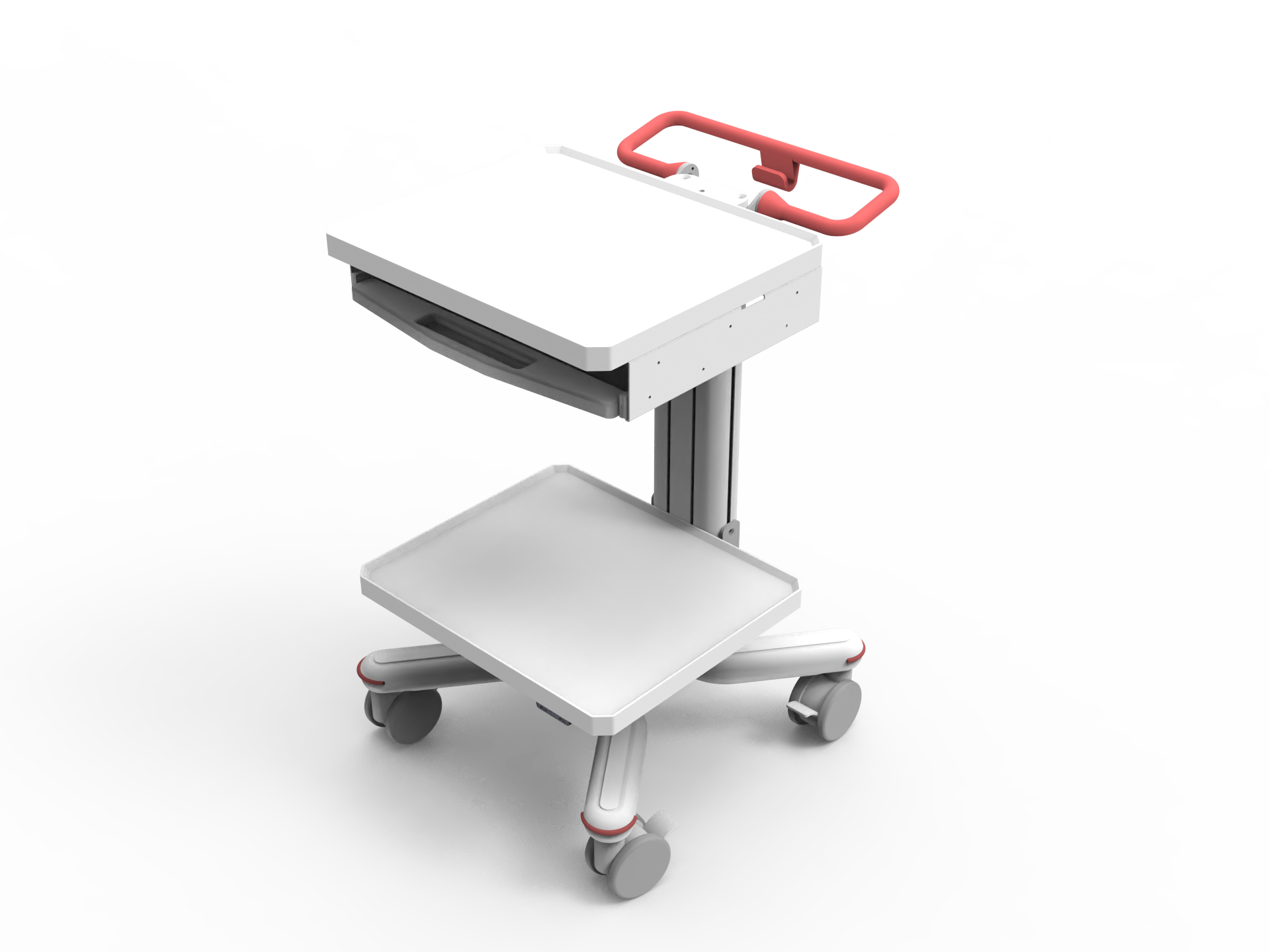

Multi-function plate height adjustable medical cart - K16
K16 – MULTI-FUNCTION ADJUSTABLE MEDICAL CART
Multi-function plate height adjustable medical cart – K16
1. The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.
2. Standard trolleys are in stock, and the minimum order is one piece.
3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.
| Trolley | Mechanical lifting platform |
| model | K16 |
| Material Code | 1.01.01.0080 |
| color | White sand grain + grayish white+Red |
| Trolley specifications/materials | 600*550*980mm Q235 steel + ABS plastic |
| Base specifications/materials | 600*550*165mm Q235 steel+ABS plastic+silicone |
| Column specifications/materials | 70*135*850mm White Sand Texture 6063 Aluminum |
| Installation platform specifications/materials | 500*430*30mm Medical white PA6 nylon |
| Handle specifications/materials | φ22*450*160mm Red Q235+Silicone |
| Partition quantity/specification/material | 1Layers of boards+1 layer keyboard500*430*30mm Medical white PA6 nylon + Q235 steel white sand grain |
| Caster Specifications/Material | 4-inch casters (4 brakes） 100*130mm PA6 nylon+TPE white/gray |
| Humidifier pendant specifications/materials | |
| Drawer specifications/materials | |
| Basket specifications/materials | |
| Infusion stand hook specifications/materials | |
| Cable hanger specifications/materials | |
| Humidifier mounting plate specifications/materials | |
| Handrail specifications/materials | |
| Handle mounting plate | |
| Monitor stand specifications/materials | |
| Oxygen cylinder rack specifications/materials | |
| Specifications/materials of strap bracket | |
| Load-bearing | 100Kg |
| Maximum push speed | 2m/s |
| Maximum tilt angle | 15° |
| Optional | |
| Packing box specifications | 805*635*300mm Double layer Mecca 170g |
| net weight | 30kg |
| Gross Weight | 33kg |
1. The function, size, appearance, LOGO and other details of the trolley can be customized according to customer requirements.
2. Standard trolleys are in stock, and the minimum order is one piece.
3. Various trolley parts and support arms, wall mounts, and other medical equipment moving and supporting parts are provided for mass production.
